Series Group Chart

각 항목을 클릭하시면 해당 타입의 제품 리스트를 확인하실 수 있습니다.

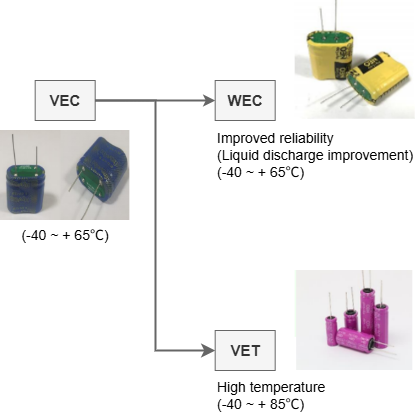

Model Series

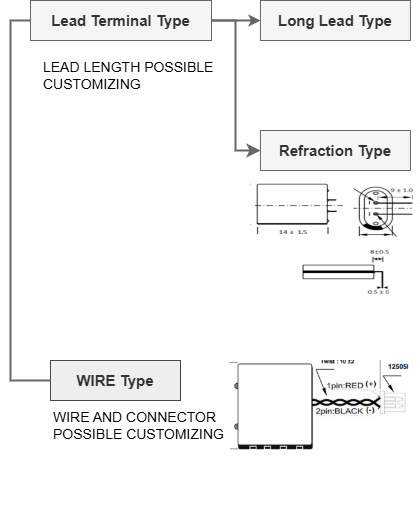

Terminal Type

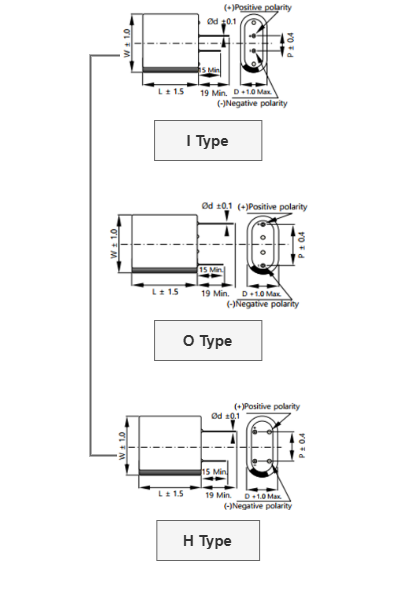

Lead Terminal Type

Part Number	Singer Cell	Rated Voltage (V)	Capacitance (F)	Lead Type	ESR (mΩ)	Leakage Current (mA, 72hr)
VEC5R4504QG-I	0813	5.4	0.50	●			265	395	0.002	5.4V -40~65˚C 4.8V -40~85˚C	8.5 x 17 x 15
VEC5R4504QG-O	0813	5.4	0.50		●		265	395	0.002	5.4V -40~65˚C 4.8V -40~85˚C	8.5 x 17 x 15
VEC5R4504QG-H	0813	5.4	0.50			●	265	395	0.002	5.4V -40~65˚C 4.8V -40~85˚C	8.5 x 17 x 15
VEC5R4155QG-I	0820	5.4	1.50	●			115	195	0.007	5.4V -40~65˚C 4.8V -40~85˚C	8.5 x 17 x 22
VEC5R4155QG-O	0820	5.4	1.50		●		115	195	0.007	5.4V -40~65˚C 4.8V -40~85˚C	8.5 x 17 x 22
VEC5R4155QG-H	0820	5.4	1.50			●	115	195	0.007	5.4V -40~65˚C 4.8V -40~85˚C	8.5 x 17 x 22
VEC5R4255QA-I	0825	5.4	2.50	●			75	125	0.01	5.4V -40~65˚C 4.8V -40~85˚C	8.5 x 17 x 27
VEC5R4255QA-O	0825	5.4	2.50		●		75	125	0.01	5.4V -40~65˚C 4.8V -40~85˚C	8.5 x 17 x 27
VEC5R4255QA-H	0825	5.4	2.50			●	75	125	0.01	5.4V -40~65˚C 4.8V -40~85˚C	8.5 x 17 x 27
VEC5R4255QG-I	1020	5.4	2.50	●			115	175	0.01	5.4V -40~65˚C 4.8V -40~85˚C	10.5 x 21 x 22.5
VEC5R4255QG-O	1020	5.4	2.50		●		115	175	0.01	5.4V -40~65˚C 4.8V -40~85˚C	10.5 x 21 x 22.5
VEC5R4255QG-H	1020	5.4	2.50			●	115	175	0.01	5.4V -40~65˚C 4.8V -40~85˚C	10.5 x 21 x 22.5
VEC5R4355QG-I	1020	5.4	3.50	●			115	195	0.014	5.4V -40~65˚C 4.8V -40~85˚C	10.5 x 21 x 22.5
VEC5R4355QG-O	1020	5.4	3.50		●		115	195	0.014	5.4V -40~65˚C 4.8V -40~85˚C	10.5 x 21 x 22.5
VEC5R4355QG-H	1020	5.4	3.50			●	115	195	0.014	5.4V -40~65˚C 4.8V -40~85˚C	10.5 x 21 x 22.5
VEC5R4505QA-I	1025	5.4	5.00	●			65	95	0.02	5.4V -40~65˚C 4.8V -40~85˚C	10.5 x 21 x 27
VEC5R4505QA-O	1025	5.4	5.00		●		65	95	0.02	5.4V -40~65˚C 4.8V -40~85˚C	10.5 x 21 x 27
VEC5R4505QA-H	1025	5.4	5.00			●	65	95	0.02	5.4V -40~65˚C 4.8V -40~85˚C	10.5 x 21 x 27
VEC5R4505QG-I	1030	5.4	5.00	●			55	75	0.02	5.4V -40~65˚C 4.8V -40~85˚C	10.5 x 22 x 32
VEC5R4505QG-O	1030	5.4	5.00		●		55	75	0.02	5.4V -40~65˚C 4.8V -40~85˚C	10.5 x 22 x 32
VEC5R4505QG-H	1030	5.4	5.00			●	55	75	0.02	5.4V -40~65˚C 4.8V -40~85˚C	10.5 x 22 x 32
VEC5R4505QC-I	1320	5.4	5.00	●			75	115	0.02	5.4V - 40~65˚C 4.8V - 40~85˚C	13 x 21 x 22.5
VEC5R4505QC-O	1320	5.4	5.00		●		75	115	0.02	5.4V - 40~65˚C 4.8V - 40~85˚C	13 x 21 x 22.5
VEC5R4505QC-H	1320	5.4	5.00			●	75	115	0.02	5.4V - 40~65˚C 4.8V - 40~85˚C	13 x 21 x 22.5
VEC5R4755QG-I	1325	5.4	7.50	●			55	85	0.03	5.4V - 40~65˚C 4.8V - 40~85˚C	13 x 26 x 28
VEC5R4755QG-O	1325	5.4	7.50		●		55	85	0.03	5.4V - 40~65˚C 4.8V - 40~85˚C	13 x 26 x 28
VEC5R4755QG-H	1325	5.4	7.50			●	55	85	0.03	5.4V - 40~65˚C 4.8V - 40~85˚C	13 x 26 x 28
VEC5R4206QG-I	1346	5.4	20.00	●			35	55	0.08	5.4V - 40~65˚C 4.8V - 40~85˚C	13.5 x 76 x 48
VEC5R4126QG-I	1625	5.4	12.50	●			39	57	0.05	5.4V - 40~65˚C 4.8V - 40~85˚C	16.5 x 32.5 x 29
VEC5R4126QG-O	1625	5.4	12.50		●		39	57	0.05	5.4V - 40~65˚C 4.8V - 40~85˚C	16.5 x 32.5 x 29
VEC5R4126QG-H	1625	5.4	12.50			●	39	57	0.05	5.4V - 40~65˚C 4.8V - 40~85˚C	16.5 x 32.5 x 29
VEC6R0504QG-I	0813	6.0	0.50	●			295	445	0.003	6.0V - 40~65˚C 4.8V - 40~85˚C	8.5 x 17 x 15.5
VEC6R0504QG-O	0813	6.0	0.50		●		295	445	0.003	6.0V - 40~65˚C 4.8V - 40~85˚C	8.5 x 17 x 15.5
VEC6R0504QG-H	0813	6.0	0.50			●	295	445	0.003	6.0V - 40~65˚C 4.8V - 40~85˚C	8.5 x 17 x 15.5
VEC6R0155QG-I	0820	6.0	1.50	●			145	215	0.01	6.0V - 40~65˚C 4.8V - 40~85˚C	8.5 x 17 x 22
VEC6R0155QG-O	0820	6.0	1.50		●		145	215	0.01	6.0V - 40~65˚C 4.8V - 40~85˚C	8.5 x 17 x 22
VEC6R0155QG-H	0820	6.0	1.50			●	145	215	0.01	6.0V - 40~65˚C 4.8V - 40~85˚C	8.5 x 17 x 22
VEC6R0754QG-H	0820	6.0	0.75			●	200	290	0.005	6.0V - 40~65˚C 4.8V - 40~85˚C	8.5 x 17 x 22
VEC6R0355QD-I	0830	6.0	3.50	●			75	125	0.021	6.0V - 40~65˚C 4.8V - 40~85˚C	8.5 x 17 x 32
VEC6R0355QD-O	0830	6.0	3.50		●		75	125	0.021	6.0V - 40~65˚C 4.8V - 40~85˚C	8.5 x 17 x 32
VEC6R0355QD-H	0830	6.0	3.50			●	75	125	0.021	6.0V - 40~65˚C 4.8V - 40~85˚C	8.5 x 17 x 32
VEC6R0255QG-I	1020	6.0	2.50	●			135	205	0.015	6.0V - 40~65˚C 4.8V - 40~85˚C	10.5 x 21 x 22.5
VEC6R0255QG-O	1020	6.0	2.50		●		135	205	0.015	6.0V - 40~65˚C 4.8V - 40~85˚C	10.5 x 21 x 22.5
VEC6R0255QG- H	1020	6.0	2.50			●	135	205	0.015	6.0V - 40~65˚C 4.8V - 40~85˚C	10.5 x 21 x 22.5
VEC6R0355QG-I	1020	6.0	3.50	●			135	225	0.021	6.0V - 40~65˚C 4.8V - 40~85˚C	10.5 x 21 x 22.5
VEC6R0355QG-O	1020	6.0	3.50		●		135	225	0.021	6.0V - 40~65˚C 4.8V - 40~85˚C	10.5 x 21 x 22.5
VEC6R0355QG-H	1020	6.0	3.50			●	135	225	0.021	6.0V - 40~65˚C 4.8V - 40~85˚C	10.5 x 21 x 22.5
VEC6R0505QA-I	1025	6.0	5.00	●			75	125	0.03	6.0V - 40~65˚C 4.8V - 40~85˚C	10.5 x 21 x 27
VEC6R0505QA-O	1025	6.0	5.00		●		75	125	0.03	6.0V - 40~65˚C 4.8V - 40~85˚C	10.5 x 21 x 27
VEC6R0505QA-H	1025	6.0	5.00			●	75	125	0.03	6.0V - 40~65˚C 4.8V - 40~85˚C	10.5 x 21 x 27
VEC6R0505QG-I	1030	6.0	5.00	●			55	85	0.03	6.0V - 40~65˚C 4.8V - 40~85˚C	10.5 x 21 x 32
VEC6R0505QG-O	1030	6.0	5.00		●		55	85	0.03	6.0V - 40~65˚C 4.8V - 40~85˚C	10.5 x 21 x 32
VEC6R0505QG-H	1030	6.0	5.00			●	55	85	0.03	6.0V - 40~65˚C 4.8V - 40~85˚C	10.5 x 21 x 32
VEC6R0755QG-I	1325	6.0	7.50	●			65	95	0.045	6.0V - 40~65˚C 4.8V - 40~85˚C	13 x 26 x 28
VEC6R0755QG-O	1325	6.0	7.50		●		65	95	0.045	6.0V - 40~65˚C 4.8V - 40~85˚C	13 x 26 x 28
VEC6R0755QG-H	1325	6.0	7.50			●	65	95	0.045	6.0V - 40~65˚C 4.8V - 40~85˚C	13 x 26 x 28
VEC6R0126QG-I	1625	6.0	12.50	●			45	65	0.075	6.0V - 40~65˚C 4.8V - 40~85˚C	16.5 x 33 x 27
VEC6R0126QG-O	1625	6.0	12.50		●		45	65	0.075	6.0V - 40~65˚C 4.8V - 40~85˚C	16.5 x 33 x 27
VEC6R0126QG-H	1625	6.0	12.50			●	45	65	0.075	6.0V - 40~65˚C 4.8V - 40~85˚C	16.5 x 33 x 27
VEC6R0176QG-I	1635	6.0	17.50	●			35	55	0.105	6.0V - 40~65˚C 4.8V - 40~85˚C	16.5 x 33 x 37
VEC6R0176QG-O	1635	6.0	17.50		●		35	55	0.105	6.0V - 40~65˚C 4.8V - 40~85˚C	16.5 x 33 x 37
VEC6R0176QG-H	1635	6.0	17.50			●	35	55	0.105	6.0V - 40~65˚C 4.8V - 40~85˚C	16.5 x 33 x 37
VEC9R0115QG-I	0820	9.0	1.10	●			215	320	0.01	6.0V - 40~65˚C 4.8V - 40~85˚C	8.5 x 25.5 x 22.5
VEC5R4256QG-WC(50mm)	1840	5.4	25			●	37	49	0.1	5.4V - 40~65˚C 4.8V - 40~85˚C	18.5 x 38 x 43
VEC5R4126QG-WC	1625	5.4	12.5			●	50	75	0.05	5.4V - 40~65˚C 4.8V - 40~85˚C	16.5 x 35 x 27
VEC6R0155QG-WC	0820	6.0	1.5			●	215	335	0.01	6.0V - 40~65˚C 4.8V - 40~85˚C	8.5 x 17 x 22.5
VEC6R0306QG-WC(40mm)	1840	6.0	30			●	65	78	6.5	6.0V - 40~65˚C 4.8V - 40~85˚C	18.5 x 38 x 43
VEC6R0506QD-WC(100mm)	1859	6.0	50			●	55	69	0.3	6.0V - 40~65˚C 4.8V - 40~85˚C	18.5 x 37 x 63

Part Number	Singer Cell	Rated Voltage (V)	Capacitance (F)	Lead Type	ESR (mΩ)	Leakage Current (mA, 72hr)	Operating Temperature	Size (mm) D x W x L
WEC5R4504QG-I	0813	5.4	0.50	●							315	465	0.002	5.4V - 40~65˚C 4.8V - 40~85˚C	8.5 x 17 x 15.5
WEC5R4504QG-O	0813	5.4	0.50		●						315	465	0.002	5.4V - 40~65˚C 4.8V - 40~85˚C	8.5 x 17 x 15.5
WEC5R4504QG-H	0813	5.4	0.50			●					315	465	0.002	5.4V - 40~65˚C 4.8V - 40~85˚C	8.5 x 17 x 15.5
WEC5R4155QG-I	0820	5.4	1.50	●							165	285	0.007	5.4V - 40~65˚C 4.8V - 40~85˚C	8.5 x 17 x 22
WEC5R4155QG-O	0820	5.4	1.50		●						165	285	0.007	5.4V - 40~65˚C 4.8V - 40~85˚C	8.5 x 17 x 22
WEC5R4155QG-H	0820	5.4	1.50			●					165	285	0.007	5.4V - 40~65˚C 4.8V - 40~85˚C	8.5 x 17 x 22
WEC5R4155QG-O-T	0820	5.4	1.50		●				●		165	285	0.007	5.4V - 40~65˚C 4.8V - 40~85˚C	8.5 x 17 x 22
WEC5R4255QA-I	0825	5.4	2.50	●							95	155	0.01	5.4V - 40~65˚C 4.8V - 40~85˚C	8.5 x 17 x 27
WEC5R4255QA-O	0825	5.4	2.50		●						95	155	0.01	5.4V - 40~65˚C 4.8V - 40~85˚C	8.5 x 17 x 27
WEC5R4255QA-H	0825	5.4	2.50			●					95	155	0.01	5.4V - 40~65˚C 4.8V - 40~85˚C	8.5 x 17 x 27
WEC5R4255QG-I	1020	5.4	2.50	●							135	205	0.01	5.4V - 40~65˚C 4.8V - 40~85˚C	8.5 x 17 x 27
WEC5R4255QG-O	1020	5.4	2.50		●						135	205	0.01	5.4V - 40~65˚C 4.8V - 40~85˚C	8.5 x 17 x 27
WEC5R4255QG-H	1020	5.4	2.50			●					135	205	0.01	5.4V - 40~65˚C 4.8V - 40~85˚C	8.5 x 17 x 27
WEC5R4355QG-I	1020	5.4	3.50	●							135	225	0.014	5.4V - 40~65˚C 4.8V - 40~85˚C	10.5 x 21 x 22.5
WEC5R4355QG-O	1020	5.4	3.50		●						135	225	0.014	5.4V - 40~65˚C 4.8V - 40~85˚C	10.5 x 21 x 22.5
WEC5R4355QG-H	1020	5.4	3.50			●					135	225	0.014	5.4V - 40~65˚C 4.8V - 40~85˚C	10.5 x 21 x 22.5
WEC5R4505QA-I	1025	5.4	5.00	●							79	135	0.02	5.4V - 40~65˚C 4.8V - 40~85˚C	10.5 x 21 x 26
WEC5R4505QA-O	1025	5.4	5.00		●						79	135	0.02	5.4V - 40~65˚C 4.8V - 40~85˚C	10.5 x 21 x 26
WEC5R4505QA-H	1025	5.4	5.00			●					79	135	0.02	5.4V - 40~65˚C 4.8V - 40~85˚C	10.5 x 21 x 26
WEC5R4505QG-I	1030	5.4	5.00	●							65	95	0.02	5.4V - 40~65˚C 4.8V - 40~85˚C	10.5 x 21 x 32
WEC5R4505QG-O	1030	5.4	5.00		●						65	95	0.02	5.4V - 40~65˚C 4.8V - 40~85˚C	10.5 x 21 x 32
WEC5R4505QG-H	1030	5.4	5.00			●					65	95	0.02	5.4V - 40~65˚C 4.8V - 40~85˚C	10.5 x 21 x 32
WEC5R4505QC-I	1320	5.4	5.00	●							95	145	0.02	5.4V - 40~65˚C 4.8V - 40~85˚C	13 x 26 x 22.5
WEC5R4505QC-O	1320	5.4	5.00		●						95	145	0.02	5.4V - 40~65˚C 4.8V - 40~85˚C	13 x 26 x 22.5
WEC5R4505QC-H	1320	5.4	5.00			●					95	145	0.02	5.4V - 40~65˚C 4.8V - 40~85˚C	13 x 26 x 22.5
WEC5R4755QG-I	1325	5.4	7.50	●							65	95	0.03	5.4V - 40~65˚C 4.8V - 40~85˚C	13 x 26 x 28
WEC5R4755QG-O	1325	5.4	7.50		●						65	95	0.03	5.4V - 40~65˚C 4.8V - 40~85˚C	13 x 26 x 28
WEC5R4755QG-H	1325	5.4	7.50			●					65	95	0.03	5.4V - 40~65˚C 4.8V - 40~85˚C	13 x 26 x 28
WEC5R4126QG-I	1625	5.4	12.50	●							47	65	0.05	5.4V - 40~65˚C 4.8V - 40~85˚C	16.5 x 32.5 x 28
WEC5R4126QG-O	1625	5.4	12.50		●						47	65	0.05	5.4V - 40~65˚C 4.8V - 40~85˚C	16.5 x 32.5 x 28
WEC5R4126QG-H	1625	5.4	12.50			●					47	65	0.05	5.4V - 40~65˚C 4.8V - 40~85˚C	16.5 x 32.5 x 28
WEC6R0504QD-I	0612	6.0	0.50	●							465	2605	0.006	6.0V - 40~65˚C 4.8V - 40~85˚C	6.5 x 13.6 x 14
WEC6R0504QD-O	0612	6.0	0.50		●						465	2605	0.006	6.0V - 40~65˚C 4.8V - 40~85˚C	6.5 x 13.6 x 14
WEC6R0504QD-IC030	0612	6.0	0.50	●							465	2605	0.006	6.0V - 40~65˚C 4.8V - 40~85˚C	6.4 x 13.6 x 14
WEC6R0504QD-IL(9mm)	0612	6.0	0.50	●				●			465	2605	0.006	6.0V - 40~65˚C 4.8V - 40~85˚C	6.4 x 13.6 x 14
WEC6R0504QG-I	0813	6.0	0.50	●							295	435	0.003	6.0V - 40~65˚C 4.8V - 40~85˚C	8.5 x 17 x 15.5
WEC6R0504QG-O	0813	6.0	0.50		●						295	435	0.003	6.0V - 40~65˚C 4.8V - 40~85˚C	8.5 x 17 x 15.5
WEC6R0504QG-H	0813	6.0	0.50			●					295	435	0.003	6.0V - 40~65˚C 4.8V - 40~85˚C	8.5 x 17 x 15.5
WEC6R0504QG-I-T	0813	6.0	0.50	●					●		295	435	0.003	6.0V - 40~65˚C 4.8V - 40~85˚C	8.5 x 17 x 15.5
WEC6R0504QG-OT(L&G)	0813	6.0	0.50		●				●		295	435	0.003	6.0V - 40~65˚C 4.8V - 40~85˚C	8.5 x 17 x 15.5
WEC6R0105QA-I	0816	6.0	1.00	●							225	375	0.006	6.0V - 40~65˚C 4.8V - 40~85˚C	8.5 x 16 x 18
WEC6R0105QA-O	0816	6.0	1.00		●						225	375	0.006	6.0V - 40~65˚C 4.8V - 40~85˚C	8.5 x 16 x 18
WEC6R0105QA-H	0816	6.0	1.00			●					225	375	0.006	6.0V - 40~65˚C 4.8V - 40~85˚C	8.5 x 16 x 18
WEC6R0105QA-OL	0816	6.0	1.00		●		●				225	375	0.006	6.0V - 40~65˚C 4.8V - 40~85˚C	8.5 x 16 x 18
WEC6R0105QA-OT(L&G)	0816	6.0	1.00		●				●		225	375	0.006	6.0V - 40~65˚C 4.8V - 40~85˚C	8.5 x 16 x 18
WEC6R0155QG-I	0820	6.0	1.50	●							175	295	0.01	6.0V - 40~65˚C 4.8V - 40~85˚C	8.5 x 17 x 22
WEC6R0155QG-O	0820	6.0	1.50		●						175	295	0.01	6.0V - 40~65˚C 4.8V - 40~85˚C	8.5 x 17 x 22
WEC6R0155QG-H	0820	6.0	1.50			●					175	295	0.01	6.0V - 40~65˚C 4.8V - 40~85˚C	8.5 x 17 x 22
WEC6R0155QG-H(L&G)	0820	6.0	1.50			●					175	295	0.01	6.0V - 40~65˚C 4.8V - 40~85˚C	8.5 x 17 x 22
WEC6R0155QG-O(AV)	0820	6.0	1.50		●						175	295	0.01	6.0V - 40~65˚C 4.8V - 40~85˚C	8.5 x 17 x 22
WEC6R0155QG-I(SP)	0820	6.0	1.50	●							175	295	0.01	6.0V - 40~65˚C 4.8V - 40~85˚C	8.5 x 17 x 22
WEC6R0155QG-OL	0820	6.0	1.50		●			●			175	295	0.01	6.0V - 40~65˚C 4.8V - 40~85˚C	8.5 x 17 x 22
WEC6R0155QG-OLA	0820	6.0	1.50		●			●			175	295	0.01	6.0V - 40~65˚C 4.8V - 40~85˚C	8.5 x 17 x 22
WEC6R0155QG-IL-ET	0820	6.0	1.50	●					●		175	295	0.01	6.0V - 40~65˚C 4.8V - 40~85˚C	8.5 x 17 x 22
WEC6R0155QG-IL	0820	6.0	1.50	●			●				175	295	0.01	6.0V - 40~65˚C 4.8V - 40~85˚C	8.5 x 17 x 22
WEC6R0155QG-ILA	0820	6.0	1.50	●			●				175	295	0.01	6.0V - 40~65˚C 4.8V - 40~85˚C	8.5 x 17 x 22
WEC6R0155QG-ILB	0820	6.0	1.50	●			●				175	295	0.01	6.0V - 40~65˚C 4.8V - 40~85˚C	8.5 x 17 x 22
WEC6R0155QG-O-T	0820	6.0	1.50		●				●		175	295	0.01	6.0V - 40~65˚C 4.8V - 40~85˚C	8.5 x 17 x 22
WEC6R0255QD-I	0825	6.0	2.50	●							105	175	0.015	6.0V - 40~65˚C 4.8V - 40~85˚C	8.5 x 17 x 27
WEC6R0255QD-O	0825	6.0	2.50		●						105	175	0.015	6.0V - 40~65˚C 4.8V - 40~85˚C	8.5 x 17 x 27
WEC6R0255QD-H	0825	6.0	2.50			●					105	175	0.015	6.0V - 40~65˚C 4.8V - 40~85˚C	8.5 x 17 x 27
WEC6R0355QD-I	0830	6.0	3.50	●							95	155	0.021	6.0V - 40~65˚C 4.8V - 40~85˚C	8.5 x 17 x 32
WEC6R0355QD-O	0830	6.0	3.50		●						95	155	0.021	6.0V - 40~65˚C 4.8V - 40~85˚C	8.5 x 17 x 32
WEC6R0355QD-H	0830	6.0	3.50			●					95	155	0.021	6.0V - 40~65˚C 4.8V - 40~85˚C	8.5 x 17 x 32
WEC6R0255QG-I	1020	6.0	2.50	●							165	245	0.015	6.0V - 40~65˚C 4.8V - 40~85˚C	10.5 x 21 x 22.5
WEC6R0255QG-O	1020	6.0	2.50		●						165	245	0.015	6.0V - 40~65˚C 4.8V - 40~85˚C	10.5 x 21 x 22.5
WEC6R0255QG-H	1020	6.0	2.50			●					165	245	0.015	6.0V - 40~65˚C 4.8V - 40~85˚C	10.5 x 21 x 22.5
WEC6R0255QG-IL	1020	6.0	2.50	●				●			165	245	0.015	6.0V - 40~65˚C 4.8V - 40~85˚C	10.5 x 21 x 22.5
WEC6R0355QG-I	1020	6.0	3.50	●							165	275	0.021	6.0V - 40~65˚C 4.8V - 40~85˚C	10.5 x 21 x 22.5
WEC6R0355QG-O	1020	6.0	3.50		●						165	275	0.021	6.0V - 40~65˚C 4.8V - 40~85˚C	10.5 x 21 x 22.5
WEC6R0355QG-H	1020	6.0	3.50			●					165	275	0.021	6.0V - 40~65˚C 4.8V - 40~85˚C	10.5 x 21 x 22.5
WEC6R0355QG-OL-C68M42	1020	6.0	3.50		●			●			165	275	0.021	6.0V - 40~65˚C 4.8V - 40~85˚C	10.5 x 21 x 22.5
WEC6R0505QA-I	1025	6.0	5.00	●							95	155	0.03	6.0V - 40~65˚C 4.8V - 40~85˚C	10.5 x 21 x 27
WEC6R0505QA-O	1025	6.0	5.00		●						95	155	0.03	6.0V - 40~65˚C 4.8V - 40~85˚C	10.5 x 21 x 27
WEC6R0505QA-H	1025	6.0	5.00			●					95	155	0.03	6.0V - 40~65˚C 4.8V - 40~85˚C	10.5 x 21 x 27
WEC6R0505QA-I-P	1025	6.0	5.00	●						●	95	155	0.03	6.0V - 40~65˚C 4.8V - 40~85˚C	10.5 x 21 x 27
WEC6R0505QA-I-L(L&G)	1025	6.0	5.00	●			●				95	155	0.03	6.0V - 40~65˚C 4.8V - 40~85˚C	10.5 x 21 x 27
WEC6R0505QA-OL	1025	6.0	5.00		●			●			95	155	0.03	6.0V - 40~65˚C 4.8V - 40~85˚C	10.5 x 21 x 27
WEC6R0505QA-OLA	1025	6.0	5.00		●			●			95	155	0.03	6.0V - 40~65˚C 4.8V - 40~85˚C	10.5 x 21 x 27
WEC6R0505QG-I	1030	6.0	5.00	●							75	115	0.03	6.0V - 40~65˚C 4.8V - 40~85˚C	10.5 x 21 x 32
WEC6R0505QG-O	1030	6.0	5.00		●						75	115	0.03	6.0V - 40~65˚C 4.8V - 40~85˚C	10.5 x 21 x 32
WEC6R0505QG-H	1030	6.0	5.00			●					75	115	0.03	6.0V - 40~65˚C 4.8V - 40~85˚C	10.5 x 21 x 32
WEC6R0505QG-IL	1030	6.0	5.00	●				●			75	115	0.03	6.0V - 40~65˚C 4.8V - 40~85˚C	10.5 x 21 x 32
WEC6R0505QG-O-T	1030	6.0	5.00		●				●	●	75	115	0.03	6.0V - 40~65˚C 4.8V - 40~85˚C	10.5 x 21 x 32
WEC6R0755QD-I	1035	6.0	7.50	●							45	65	0.045	6.0V - 40~65˚C 4.8V - 40~85˚C	10.5 x 21 x 37
WEC6R0755QD-O	1035	6.0	7.50		●						45	65	0.045	6.0V - 40~65˚C 4.8V - 40~85˚C	10.5 x 21 x 37
WEC6R0755QD-H	1035	6.0	7.50			●					45	65	0.045	6.0V - 40~65˚C 4.8V - 40~85˚C	10.5 x 21 x 37
WEC6R0505QD-I	1320	6.0	5.00	●							110	160	0.03	6.0V - 40~65˚C 4.8V - 40~85˚C	13 x 26 x 22
WEC6R0505QD-O	1320	6.0	5.00		●						110	160	0.03	6.0V - 40~65˚C 4.8V - 40~85˚C	13 x 26 x 22
WEC6R0505QD-H	1320	6.0	5.00			●					110	160	0.03	6.0V - 40~65˚C 4.8V - 40~85˚C	13 x 26 x 22
WEC6R0755QG-I	1325	6.0	7.50	●							79	115	0.045	6.0V - 40~65˚C 4.8V - 40~85˚C	13 x 26 x 28
WEC6R0755QG-O	1325	6.0	7.50		●						79	115	0.045	6.0V - 40~65˚C 4.8V - 40~85˚C	13 x 26 x 28
WEC6R0755QG-H	1325	6.0	7.50			●					79	115	0.045	6.0V - 40~65˚C 4.8V - 40~85˚C	13 x 26 x 28
WEC6R0755QG-O-T	1325	6.0	7.50		●				●		79	115	0.045	6.0V - 40~65˚C 4.8V - 40~85˚C	13 x 26 x 28
WEC6R0755QG-O-L	1325	6.0	7.50		●		●				79	115	0.045	6.0V - 40~65˚C 4.8V - 40~85˚C	13 x 26 x 28
WEC6R0755QG-HL	1325	6.0	7.50			●		●			79	115	0.045	6.0V - 40~65˚C 4.8V - 40~85˚C	13 x 26 x 28
WEC6R0126QD-O	1335	6.0	12.00		●						45	65	0.075	6.0V - 40~65˚C 4.8V - 40~85˚C	13 x 26 x 36
WEC6R0126QG-I	1625	6.0	12.00	●							55	85	0.075	6.0V - 40~65˚C 4.8V - 40~85˚C	16.5 x 32.5 x 28
WEC6R0126QG-O	1625	6.0	12.00		●						55	85	0.075	6.0V - 40~65˚C 4.8V - 40~85˚C	16.5 x 32.5 x 28
WEC6R0126QG-H	1625	6.0	12.00			●					55	85	0.075	6.0V - 40~65˚C 4.8V - 40~85˚C	16.5 x 32.5 x 28
WEC6R0176QG-I	1635	6.0	17.50	●							40	60	0.105	6.0V - 40~65˚C 4.8V - 40~85˚C	16.5 x 32.5 x 38
WEC6R0176QG-O	1635	6.0	17.50		●						40	60	0.105	6.0V - 40~65˚C 4.8V - 40~85˚C	16.5 x 32.5 x 38
WEC6R0176QG-H	1635	6.0	17.50			●					40	60	0.105	6.0V - 40~65˚C 4.8V - 40~85˚C	16.5 x 32.5 x 38
WEC6R0256QG-I	1840	6.0	25.00	●							28	44	0.15	6.0V - 40~65˚C 4.8V - 40~85˚C	18.5 x 37 x 43
WEC6R0256QG-O	1840	6.0	25.00		●						28	44	0.15	6.0V - 40~65˚C 4.8V - 40~85˚C	18.5 x 37 x 43
WEC6R0256QG-H	1840	6.0	25.00			●					28	44	0.15	6.0V - 40~65˚C 4.8V - 40~85˚C	18.5 x 37 x 43
WEC6R0306QG-I	1840	6.0	30.00	●							36	50	0.18	6.0V - 40~65˚C 4.8V - 40~85˚C	18.5 x 37 x 44
WEC6R0355QG-3PLA	1025	6.0	3.50	●				●			75	105	0.021	6.0V - 40~65˚C 4.8V - 40~85˚C	10.5 x 21 x 27
WEC9R0334QG-I	0813	9.0	0.33	●							530	800	0.003	6.0V - 40~65˚C 4.8V - 40~85˚C	8.5 x 25.5 x 15.5
WEC9R0115QG-I	0820	9.0	1.10	●							260	440	0.01	6.0V - 40~65˚C 4.8V - 40~85˚C	8.5 x 25.5 x 22.5
WEC6R0155QG-WCI(25mm)	0820	6.0	1.5			●					215	335	0.01	6.0V - 40~65˚C 4.8V - 40~85˚C	8.5 x 17 x 22
WEC6R0155QG-WCI(40mm)	0820	6.0	1.5			●					225	345	0.01	6.0V - 40~65˚C 4.8V - 40~85˚C	8.5 x 17 x 22
WEC6R0355QD-WC(35mm)	0830	6.0	3.5			●					115	155	0.021	6.0V - 40~65˚C 4.8V - 40~85˚C	8.5 x 17 x 32
WEC6R0355QD-WC(70mm)	0830	6.0	3.5			●					145	205	0.021	6.0V - 40~65˚C 4.8V - 40~85˚C	8.5 x 17 x 32
WEC6R0355QD-WC(80mm)	0830	6.0	3.5			●					145	205	0.021	6.0V - 40~65˚C 4.8V - 40~85˚C	8.5 x 17 x 32
WEC6R0355QG-WCI(45mm)	1020	6.0	3.5	●							200	310	0.021	6.0V - 40~65˚C 4.8V - 40~85˚C	10.5 x 21 x 22
WEC6R0355QG-WCI(35mm)	1020	6.0	3.5	●							180	290	0.021	6.0V - 40~65˚C 4.8V - 40~85˚C	10.5 x 21 x 22
WEC6R0505QA-WCI(35mm)	1025	6.0	5.0	●							130	190	0.03	6.0V - 40~65˚C 4.8V - 40~85˚C	10.5 x 21 x 27
WEC6R0505QA-WCI(50mm)	1030	6.0	5.0	●							135	195	0.03	6.0V - 40~65˚C 4.8V - 40~85˚C	10.5 x 21 x 27
WEC6R0505QA-WCI(62mm)	1025	6.0	5.0	●							140	200	0.06	6.0V - 40~65˚C 4.8V - 40~85˚C	10.5 x 21 x 27
WEC6R0755QG-WCI(35mm)	1325	6.0	7.5	●							115	145	0.045	6.0V - 40~65˚C 4.8V - 40~85˚C	12.5 x 26 x 28
WEC6R0755QG-WC(90mm)	1325	6.0	7.5			●					109	145	0.045	6.0V - 40~65˚C 4.8V - 40~85˚C	12.5 x 26 x 28
WEC9R0166QG-WC(60mm)	1840	9.0	16			●					65	86	1.65	9.0V - 40~65˚C	18.5 x 55.5 x 44.5

Part Number	Singer Cell	Rated Voltage (V)	Capacitance (F)	Lead Type	ESR (mΩ)	Leakage Current (mA, 72hr)	Operating Temperature	Size (mm) D x W x L
VEC5R4504QG-I	0813	5.4	0.50	●							265	395	0.002	5.4V -40~65˚C 4.8V -40~85˚C	8.5 x 17 x 15
VEC5R4504QG-O	0813	5.4	0.50		●						265	395	0.002	5.4V -40~65˚C 4.8V -40~85˚C	8.5 x 17 x 15
VEC5R4504QG-H	0813	5.4	0.50			●					265	395	0.002	5.4V -40~65˚C 4.8V -40~85˚C	8.5 x 17 x 15
VEC5R4155QG-I	0820	5.4	1.50	●							115	195	0.007	5.4V -40~65˚C 4.8V -40~85˚C	8.5 x 17 x 22
VEC5R4155QG-O	0820	5.4	1.50		●						115	195	0.007	5.4V -40~65˚C 4.8V -40~85˚C	8.5 x 17 x 22
VEC5R4155QG-H	0820	5.4	1.50			●					115	195	0.007	5.4V -40~65˚C 4.8V -40~85˚C	8.5 x 17 x 22
VEC5R4255QA-I	0825	5.4	2.50	●							75	125	0.01	5.4V -40~65˚C 4.8V -40~85˚C	8.5 x 17 x 27
VEC5R4255QA-O	0825	5.4	2.50		●						75	125	0.01	5.4V -40~65˚C 4.8V -40~85˚C	8.5 x 17 x 27
VEC5R4255QA-H	0825	5.4	2.50			●					75	125	0.01	5.4V -40~65˚C 4.8V -40~85˚C	8.5 x 17 x 27
VEC5R4255QG-I	1020	5.4	2.50	●							115	175	0.01	5.4V -40~65˚C 4.8V -40~85˚C	10.5 x 21 x 22.5
VEC5R4255QG-O	1020	5.4	2.50		●						115	175	0.01	5.4V -40~65˚C 4.8V -40~85˚C	10.5 x 21 x 22.5
VEC5R4255QG-H	1020	5.4	2.50			●					115	175	0.01	5.4V -40~65˚C 4.8V -40~85˚C	10.5 x 21 x 22.5
VEC5R4355QG-I	1020	5.4	3.50	●							115	195	0.014	5.4V -40~65˚C 4.8V -40~85˚C	10.5 x 21 x 22.5
VEC5R4355QG-O	1020	5.4	3.50		●						115	195	0.014	5.4V -40~65˚C 4.8V -40~85˚C	10.5 x 21 x 22.5
VEC5R4355QG-H	1020	5.4	3.50			●					115	195	0.014	5.4V -40~65˚C 4.8V -40~85˚C	10.5 x 21 x 22.5
VEC5R4505QA-I	1025	5.4	5.00	●							65	95	0.02	5.4V -40~65˚C 4.8V -40~85˚C	10.5 x 21 x 27
VEC5R4505QA-O	1025	5.4	5.00		●						65	95	0.02	5.4V -40~65˚C 4.8V -40~85˚C	10.5 x 21 x 27
VEC5R4505QA-H	1025	5.4	5.00			●					65	95	0.02	5.4V -40~65˚C 4.8V -40~85˚C	10.5 x 21 x 27
VEC5R4505QG-I	1030	5.4	5.00	●							55	75	0.02	5.4V -40~65˚C 4.8V -40~85˚C	10.5 x 22 x 32
VEC5R4505QG-O	1030	5.4	5.00		●						55	75	0.02	5.4V -40~65˚C 4.8V -40~85˚C	10.5 x 22 x 32
VEC5R4505QG-H	1030	5.4	5.00			●					55	75	0.02	5.4V -40~65˚C 4.8V -40~85˚C	10.5 x 22 x 32
VEC5R4505QC-I	1320	5.4	5.00	●							75	115	0.02	5.4V - 40~65˚C 4.8V - 40~85˚C	13 x 21 x 22.5
VEC5R4505QC-O	1320	5.4	5.00		●						75	115	0.02	5.4V - 40~65˚C 4.8V - 40~85˚C	13 x 21 x 22.5
VEC5R4505QC-H	1320	5.4	5.00			●					75	115	0.02	5.4V - 40~65˚C 4.8V - 40~85˚C	13 x 21 x 22.5
VEC5R4755QG-I	1325	5.4	7.50	●							55	85	0.03	5.4V - 40~65˚C 4.8V - 40~85˚C	13 x 26 x 28
VEC5R4755QG-O	1325	5.4	7.50		●						55	85	0.03	5.4V - 40~65˚C 4.8V - 40~85˚C	13 x 26 x 28
VEC5R4755QG-H	1325	5.4	7.50			●					55	85	0.03	5.4V - 40~65˚C 4.8V - 40~85˚C	13 x 26 x 28
VEC5R4206QG-I	1346	5.4	20.00	●							35	55	0.08	5.4V - 40~65˚C 4.8V - 40~85˚C	13.5 x 76 x 48
VEC5R4126QG-I	1625	5.4	12.50	●							39	57	0.05	5.4V - 40~65˚C 4.8V - 40~85˚C	16.5 x 32.5 x 29
VEC5R4126QG-O	1625	5.4	12.50		●						39	57	0.05	5.4V - 40~65˚C 4.8V - 40~85˚C	16.5 x 32.5 x 29
VEC5R4126QG-H	1625	5.4	12.50			●					39	57	0.05	5.4V - 40~65˚C 4.8V - 40~85˚C	16.5 x 32.5 x 29
VEC6R0504QG-I	0813	6.0	0.50	●							295	445	0.003	6.0V - 40~65˚C 4.8V - 40~85˚C	8.5 x 17 x 15.5
VEC6R0504QG-O	0813	6.0	0.50		●						295	445	0.003	6.0V - 40~65˚C 4.8V - 40~85˚C	8.5 x 17 x 15.5
VEC6R0504QG-H	0813	6.0	0.50			●					295	445	0.003	6.0V - 40~65˚C 4.8V - 40~85˚C	8.5 x 17 x 15.5
VEC6R0155QG-I	0820	6.0	1.50	●							145	215	0.01	6.0V - 40~65˚C 4.8V - 40~85˚C	8.5 x 17 x 22
VEC6R0155QG-O	0820	6.0	1.50		●						145	215	0.01	6.0V - 40~65˚C 4.8V - 40~85˚C	8.5 x 17 x 22
VEC6R0155QG-H	0820	6.0	1.50			●					145	215	0.01	6.0V - 40~65˚C 4.8V - 40~85˚C	8.5 x 17 x 22
VEC6R0754QG-H	0820	6.0	0.75			●					200	290	0.005	6.0V - 40~65˚C 4.8V - 40~85˚C	8.5 x 17 x 22
VEC6R0355QD-I	0830	6.0	3.50	●							75	125	0.021	6.0V - 40~65˚C 4.8V - 40~85˚C	8.5 x 17 x 32
VEC6R0355QD-O	0830	6.0	3.50		●						75	125	0.021	6.0V - 40~65˚C 4.8V - 40~85˚C	8.5 x 17 x 32
VEC6R0355QD-H	0830	6.0	3.50			●					75	125	0.021	6.0V - 40~65˚C 4.8V - 40~85˚C	8.5 x 17 x 32
VEC6R0255QG-I	1020	6.0	2.50	●							135	205	0.015	6.0V - 40~65˚C 4.8V - 40~85˚C	10.5 x 21 x 22.5
VEC6R0255QG-O	1020	6.0	2.50		●						135	205	0.015	6.0V - 40~65˚C 4.8V - 40~85˚C	10.5 x 21 x 22.5
VEC6R0255QG- H	1020	6.0	2.50			●					135	205	0.015	6.0V - 40~65˚C 4.8V - 40~85˚C	10.5 x 21 x 22.5
VEC6R0355QG-I	1020	6.0	3.50	●							135	225	0.021	6.0V - 40~65˚C 4.8V - 40~85˚C	10.5 x 21 x 22.5
VEC6R0355QG-O	1020	6.0	3.50		●						135	225	0.021	6.0V - 40~65˚C 4.8V - 40~85˚C	10.5 x 21 x 22.5
VEC6R0355QG-H	1020	6.0	3.50			●					135	225	0.021	6.0V - 40~65˚C 4.8V - 40~85˚C	10.5 x 21 x 22.5
VEC6R0505QA-I	1025	6.0	5.00	●							75	125	0.03	6.0V - 40~65˚C 4.8V - 40~85˚C	10.5 x 21 x 27
VEC6R0505QA-O	1025	6.0	5.00		●						75	125	0.03	6.0V - 40~65˚C 4.8V - 40~85˚C	10.5 x 21 x 27
VEC6R0505QA-H	1025	6.0	5.00			●					75	125	0.03	6.0V - 40~65˚C 4.8V - 40~85˚C	10.5 x 21 x 27
VEC6R0505QG-I	1030	6.0	5.00	●							55	85	0.03	6.0V - 40~65˚C 4.8V - 40~85˚C	10.5 x 21 x 32
VEC6R0505QG-O	1030	6.0	5.00		●						55	85	0.03	6.0V - 40~65˚C 4.8V - 40~85˚C	10.5 x 21 x 32
VEC6R0505QG-H	1030	6.0	5.00			●					55	85	0.03	6.0V - 40~65˚C 4.8V - 40~85˚C	10.5 x 21 x 32
VEC6R0755QG-I	1325	6.0	7.50	●							65	95	0.045	6.0V - 40~65˚C 4.8V - 40~85˚C	13 x 26 x 28
VEC6R0755QG-O	1325	6.0	7.50		●						65	95	0.045	6.0V - 40~65˚C 4.8V - 40~85˚C	13 x 26 x 28
VEC6R0755QG-H	1325	6.0	7.50			●					65	95	0.045	6.0V - 40~65˚C 4.8V - 40~85˚C	13 x 26 x 28
VEC6R0126QG-I	1625	6.0	12.50	●							45	65	0.075	6.0V - 40~65˚C 4.8V - 40~85˚C	16.5 x 33 x 27
VEC6R0126QG-O	1625	6.0	12.50		●						45	65	0.075	6.0V - 40~65˚C 4.8V - 40~85˚C	16.5 x 33 x 27
VEC6R0126QG-H	1625	6.0	12.50			●					45	65	0.075	6.0V - 40~65˚C 4.8V - 40~85˚C	16.5 x 33 x 27
VEC6R0176QG-I	1635	6.0	17.50	●							35	55	0.105	6.0V - 40~65˚C 4.8V - 40~85˚C	16.5 x 33 x 37
VEC6R0176QG-O	1635	6.0	17.50		●						35	55	0.105	6.0V - 40~65˚C 4.8V - 40~85˚C	16.5 x 33 x 37
VEC6R0176QG-H	1635	6.0	17.50			●					35	55	0.105	6.0V - 40~65˚C 4.8V - 40~85˚C	16.5 x 33 x 37
VEC9R0115QG-I	0820	9.0	1.10	●							215	320	0.01	6.0V - 40~65˚C 4.8V - 40~85˚C	8.5 x 25.5 x 22.5
WEC5R4504QG-I	0813	5.4	0.50	●							315	465	0.002	5.4V - 40~65˚C 4.8V - 40~85˚C	8.5 x 17 x 15.5
WEC5R4504QG-O	0813	5.4	0.50		●						315	465	0.002	5.4V - 40~65˚C 4.8V - 40~85˚C	8.5 x 17 x 15.5
WEC5R4504QG-H	0813	5.4	0.50			●					315	465	0.002	5.4V - 40~65˚C 4.8V - 40~85˚C	8.5 x 17 x 15.5
WEC5R4155QG-I	0820	5.4	1.50	●							165	285	0.007	5.4V - 40~65˚C 4.8V - 40~85˚C	8.5 x 17 x 22
WEC5R4155QG-O	0820	5.4	1.50		●						165	285	0.007	5.4V - 40~65˚C 4.8V - 40~85˚C	8.5 x 17 x 22
WEC5R4155QG-H	0820	5.4	1.50			●					165	285	0.007	5.4V - 40~65˚C 4.8V - 40~85˚C	8.5 x 17 x 22
WEC5R4155QG-O-T	0820	5.4	1.50		●				●		165	285	0.007	5.4V - 40~65˚C 4.8V - 40~85˚C	8.5 x 17 x 22
WEC5R4255QA-I	0825	5.4	2.50	●							95	155	0.01	5.4V - 40~65˚C 4.8V - 40~85˚C	8.5 x 17 x 27
WEC5R4255QA-O	0825	5.4	2.50		●						95	155	0.01	5.4V - 40~65˚C 4.8V - 40~85˚C	8.5 x 17 x 27
WEC5R4255QA-H	0825	5.4	2.50			●					95	155	0.01	5.4V - 40~65˚C 4.8V - 40~85˚C	8.5 x 17 x 27
WEC5R4255QG-I	1020	5.4	2.50	●							135	205	0.01	5.4V - 40~65˚C 4.8V - 40~85˚C	8.5 x 17 x 27
WEC5R4255QG-O	1020	5.4	2.50		●						135	205	0.01	5.4V - 40~65˚C 4.8V - 40~85˚C	8.5 x 17 x 27
WEC5R4255QG-H	1020	5.4	2.50			●					135	205	0.01	5.4V - 40~65˚C 4.8V - 40~85˚C	8.5 x 17 x 27
WEC5R4355QG-I	1020	5.4	3.50	●							135	225	0.014	5.4V - 40~65˚C 4.8V - 40~85˚C	10.5 x 21 x 22.5
WEC5R4355QG-O	1020	5.4	3.50		●						135	225	0.014	5.4V - 40~65˚C 4.8V - 40~85˚C	10.5 x 21 x 22.5
WEC5R4355QG-H	1020	5.4	3.50			●					135	225	0.014	5.4V - 40~65˚C 4.8V - 40~85˚C	10.5 x 21 x 22.5
WEC5R4505QA-I	1025	5.4	5.00	●							79	135	0.02	5.4V - 40~65˚C 4.8V - 40~85˚C	10.5 x 21 x 26
WEC5R4505QA-O	1025	5.4	5.00		●						79	135	0.02	5.4V - 40~65˚C 4.8V - 40~85˚C	10.5 x 21 x 26
WEC5R4505QA-H	1025	5.4	5.00			●					79	135	0.02	5.4V - 40~65˚C 4.8V - 40~85˚C	10.5 x 21 x 26
WEC5R4505QG-I	1030	5.4	5.00	●							65	95	0.02	5.4V - 40~65˚C 4.8V - 40~85˚C	10.5 x 21 x 32
WEC5R4505QG-O	1030	5.4	5.00		●						65	95	0.02	5.4V - 40~65˚C 4.8V - 40~85˚C	10.5 x 21 x 32
WEC5R4505QG-H	1030	5.4	5.00			●					65	95	0.02	5.4V - 40~65˚C 4.8V - 40~85˚C	10.5 x 21 x 32
WEC5R4505QC-I	1320	5.4	5.00	●							95	145	0.02	5.4V - 40~65˚C 4.8V - 40~85˚C	13 x 26 x 22.5
WEC5R4505QC-O	1320	5.4	5.00		●						95	145	0.02	5.4V - 40~65˚C 4.8V - 40~85˚C	13 x 26 x 22.5
WEC5R4505QC-H	1320	5.4	5.00			●					95	145	0.02	5.4V - 40~65˚C 4.8V - 40~85˚C	13 x 26 x 22.5
WEC5R4755QG-I	1325	5.4	7.50	●							65	95	0.03	5.4V - 40~65˚C 4.8V - 40~85˚C	13 x 26 x 28
WEC5R4755QG-O	1325	5.4	7.50		●						65	95	0.03	5.4V - 40~65˚C 4.8V - 40~85˚C	13 x 26 x 28
WEC5R4755QG-H	1325	5.4	7.50			●					65	95	0.03	5.4V - 40~65˚C 4.8V - 40~85˚C	13 x 26 x 28
WEC5R4126QG-I	1625	5.4	12.50	●							47	65	0.05	5.4V - 40~65˚C 4.8V - 40~85˚C	16.5 x 32.5 x 28
WEC5R4126QG-O	1625	5.4	12.50		●						47	65	0.05	5.4V - 40~65˚C 4.8V - 40~85˚C	16.5 x 32.5 x 28
WEC5R4126QG-H	1625	5.4	12.50			●					47	65	0.05	5.4V - 40~65˚C 4.8V - 40~85˚C	16.5 x 32.5 x 28
WEC6R0504QD-I	0612	6.0	0.50	●							465	2605	0.006	6.0V - 40~65˚C 4.8V - 40~85˚C	6.5 x 13.6 x 14
WEC6R0504QD-O	0612	6.0	0.50		●						465	2605	0.006	6.0V - 40~65˚C 4.8V - 40~85˚C	6.5 x 13.6 x 14
WEC6R0504QD-IC030	0612	6.0	0.50	●							465	2605	0.006	6.0V - 40~65˚C 4.8V - 40~85˚C	6.4 x 13.6 x 14
WEC6R0504QD-IL(9mm)	0612	6.0	0.50	●				●			465	2605	0.006	6.0V - 40~65˚C 4.8V - 40~85˚C	6.4 x 13.6 x 14
WEC6R0504QG-I	0813	6.0	0.50	●							295	435	0.003	6.0V - 40~65˚C 4.8V - 40~85˚C	8.5 x 17 x 15.5
WEC6R0504QG-O	0813	6.0	0.50		●						295	435	0.003	6.0V - 40~65˚C 4.8V - 40~85˚C	8.5 x 17 x 15.5
WEC6R0504QG-H	0813	6.0	0.50			●					295	435	0.003	6.0V - 40~65˚C 4.8V - 40~85˚C	8.5 x 17 x 15.5
WEC6R0504QG-I-T	0813	6.0	0.50	●					●		295	435	0.003	6.0V - 40~65˚C 4.8V - 40~85˚C	8.5 x 17 x 15.5
WEC6R0504QG-OT(L&G)	0813	6.0	0.50		●				●		295	435	0.003	6.0V - 40~65˚C 4.8V - 40~85˚C	8.5 x 17 x 15.5
WEC6R0105QA-I	0816	6.0	1.00	●							225	375	0.006	6.0V - 40~65˚C 4.8V - 40~85˚C	8.5 x 16 x 18
WEC6R0105QA-O	0816	6.0	1.00		●						225	375	0.006	6.0V - 40~65˚C 4.8V - 40~85˚C	8.5 x 16 x 18
WEC6R0105QA-H	0816	6.0	1.00			●					225	375	0.006	6.0V - 40~65˚C 4.8V - 40~85˚C	8.5 x 16 x 18
WEC6R0105QA-OL	0816	6.0	1.00		●		●				225	375	0.006	6.0V - 40~65˚C 4.8V - 40~85˚C	8.5 x 16 x 18
WEC6R0105QA-OT(L&G)	0816	6.0	1.00		●				●		225	375	0.006	6.0V - 40~65˚C 4.8V - 40~85˚C	8.5 x 16 x 18
WEC6R0155QG-I	0820	6.0	1.50	●							175	295	0.01	6.0V - 40~65˚C 4.8V - 40~85˚C	8.5 x 17 x 22
WEC6R0155QG-O	0820	6.0	1.50		●						175	295	0.01	6.0V - 40~65˚C 4.8V - 40~85˚C	8.5 x 17 x 22
WEC6R0155QG-H	0820	6.0	1.50			●					175	295	0.01	6.0V - 40~65˚C 4.8V - 40~85˚C	8.5 x 17 x 22
WEC6R0155QG-H(L&G)	0820	6.0	1.50			●					175	295	0.01	6.0V - 40~65˚C 4.8V - 40~85˚C	8.5 x 17 x 22
WEC6R0155QG-O(AV)	0820	6.0	1.50		●						175	295	0.01	6.0V - 40~65˚C 4.8V - 40~85˚C	8.5 x 17 x 22
WEC6R0155QG-I(SP)	0820	6.0	1.50	●							175	295	0.01	6.0V - 40~65˚C 4.8V - 40~85˚C	8.5 x 17 x 22
WEC6R0155QG-OL	0820	6.0	1.50		●			●			175	295	0.01	6.0V - 40~65˚C 4.8V - 40~85˚C	8.5 x 17 x 22
WEC6R0155QG-OLA	0820	6.0	1.50		●			●			175	295	0.01	6.0V - 40~65˚C 4.8V - 40~85˚C	8.5 x 17 x 22
WEC6R0155QG-IL-ET	0820	6.0	1.50	●					●		175	295	0.01	6.0V - 40~65˚C 4.8V - 40~85˚C	8.5 x 17 x 22
WEC6R0155QG-IL	0820	6.0	1.50	●			●				175	295	0.01	6.0V - 40~65˚C 4.8V - 40~85˚C	8.5 x 17 x 22
WEC6R0155QG-ILA	0820	6.0	1.50	●			●				175	295	0.01	6.0V - 40~65˚C 4.8V - 40~85˚C	8.5 x 17 x 22
WEC6R0155QG-ILB	0820	6.0	1.50	●			●				175	295	0.01	6.0V - 40~65˚C 4.8V - 40~85˚C	8.5 x 17 x 22
WEC6R0155QG-O-T	0820	6.0	1.50		●				●		175	295	0.01	6.0V - 40~65˚C 4.8V - 40~85˚C	8.5 x 17 x 22
WEC6R0255QD-I	0825	6.0	2.50	●							105	175	0.015	6.0V - 40~65˚C 4.8V - 40~85˚C	8.5 x 17 x 27
WEC6R0255QD-O	0825	6.0	2.50		●						105	175	0.015	6.0V - 40~65˚C 4.8V - 40~85˚C	8.5 x 17 x 27
WEC6R0255QD-H	0825	6.0	2.50			●					105	175	0.015	6.0V - 40~65˚C 4.8V - 40~85˚C	8.5 x 17 x 27
WEC6R0355QD-I	0830	6.0	3.50	●							95	155	0.021	6.0V - 40~65˚C 4.8V - 40~85˚C	8.5 x 17 x 32
WEC6R0355QD-O	0830	6.0	3.50		●						95	155	0.021	6.0V - 40~65˚C 4.8V - 40~85˚C	8.5 x 17 x 32
WEC6R0355QD-H	0830	6.0	3.50			●					95	155	0.021	6.0V - 40~65˚C 4.8V - 40~85˚C	8.5 x 17 x 32
WEC6R0255QG-I	1020	6.0	2.50	●							165	245	0.015	6.0V - 40~65˚C 4.8V - 40~85˚C	10.5 x 21 x 22.5
WEC6R0255QG-O	1020	6.0	2.50		●						165	245	0.015	6.0V - 40~65˚C 4.8V - 40~85˚C	10.5 x 21 x 22.5
WEC6R0255QG-H	1020	6.0	2.50			●					165	245	0.015	6.0V - 40~65˚C 4.8V - 40~85˚C	10.5 x 21 x 22.5
WEC6R0255QG-IL	1020	6.0	2.50	●				●			165	245	0.015	6.0V - 40~65˚C 4.8V - 40~85˚C	10.5 x 21 x 22.5
WEC6R0355QG-I	1020	6.0	3.50	●							165	275	0.021	6.0V - 40~65˚C 4.8V - 40~85˚C	10.5 x 21 x 22.5
WEC6R0355QG-O	1020	6.0	3.50		●						165	275	0.021	6.0V - 40~65˚C 4.8V - 40~85˚C	10.5 x 21 x 22.5
WEC6R0355QG-H	1020	6.0	3.50			●					165	275	0.021	6.0V - 40~65˚C 4.8V - 40~85˚C	10.5 x 21 x 22.5
WEC6R0355QG-OL-C68M42	1020	6.0	3.50		●			●			165	275	0.021	6.0V - 40~65˚C 4.8V - 40~85˚C	10.5 x 21 x 22.5
WEC6R0505QA-I	1025	6.0	5.00	●							95	155	0.03	6.0V - 40~65˚C 4.8V - 40~85˚C	10.5 x 21 x 27
WEC6R0505QA-O	1025	6.0	5.00		●						95	155	0.03	6.0V - 40~65˚C 4.8V - 40~85˚C	10.5 x 21 x 27
WEC6R0505QA-H	1025	6.0	5.00			●					95	155	0.03	6.0V - 40~65˚C 4.8V - 40~85˚C	10.5 x 21 x 27
WEC6R0505QA-I-P	1025	6.0	5.00	●						●	95	155	0.03	6.0V - 40~65˚C 4.8V - 40~85˚C	10.5 x 21 x 27
WEC6R0505QA-I-L(L&G)	1025	6.0	5.00	●			●				95	155	0.03	6.0V - 40~65˚C 4.8V - 40~85˚C	10.5 x 21 x 27
WEC6R0505QA-OL	1025	6.0	5.00		●			●			95	155	0.03	6.0V - 40~65˚C 4.8V - 40~85˚C	10.5 x 21 x 27
WEC6R0505QA-OLA	1025	6.0	5.00		●			●			95	155	0.03	6.0V - 40~65˚C 4.8V - 40~85˚C	10.5 x 21 x 27
WEC6R0505QG-I	1030	6.0	5.00	●							75	115	0.03	6.0V - 40~65˚C 4.8V - 40~85˚C	10.5 x 21 x 32
WEC6R0505QG-O	1030	6.0	5.00		●						75	115	0.03	6.0V - 40~65˚C 4.8V - 40~85˚C	10.5 x 21 x 32
WEC6R0505QG-H	1030	6.0	5.00			●					75	115	0.03	6.0V - 40~65˚C 4.8V - 40~85˚C	10.5 x 21 x 32
WEC6R0505QG-IL	1030	6.0	5.00	●				●			75	115	0.03	6.0V - 40~65˚C 4.8V - 40~85˚C	10.5 x 21 x 32
WEC6R0505QG-O-T	1030	6.0	5.00		●				●	●	75	115	0.03	6.0V - 40~65˚C 4.8V - 40~85˚C	10.5 x 21 x 32
WEC6R0755QD-I	1035	6.0	7.50	●							45	65	0.045	6.0V - 40~65˚C 4.8V - 40~85˚C	10.5 x 21 x 37
WEC6R0755QD-O	1035	6.0	7.50		●						45	65	0.045	6.0V - 40~65˚C 4.8V - 40~85˚C	10.5 x 21 x 37
WEC6R0755QD-H	1035	6.0	7.50			●					45	65	0.045	6.0V - 40~65˚C 4.8V - 40~85˚C	10.5 x 21 x 37
WEC6R0505QD-I	1320	6.0	5.00	●							110	160	0.03	6.0V - 40~65˚C 4.8V - 40~85˚C	13 x 26 x 22
WEC6R0505QD-O	1320	6.0	5.00		●						110	160	0.03	6.0V - 40~65˚C 4.8V - 40~85˚C	13 x 26 x 22
WEC6R0505QD-H	1320	6.0	5.00			●					110	160	0.03	6.0V - 40~65˚C 4.8V - 40~85˚C	13 x 26 x 22
WEC6R0755QG-I	1325	6.0	7.50	●							79	115	0.045	6.0V - 40~65˚C 4.8V - 40~85˚C	13 x 26 x 28
WEC6R0755QG-O	1325	6.0	7.50		●						79	115	0.045	6.0V - 40~65˚C 4.8V - 40~85˚C	13 x 26 x 28
WEC6R0755QG-H	1325	6.0	7.50			●					79	115	0.045	6.0V - 40~65˚C 4.8V - 40~85˚C	13 x 26 x 28
WEC6R0755QG-O-T	1325	6.0	7.50		●				●		79	115	0.045	6.0V - 40~65˚C 4.8V - 40~85˚C	13 x 26 x 28
WEC6R0755QG-O-L	1325	6.0	7.50		●		●				79	115	0.045	6.0V - 40~65˚C 4.8V - 40~85˚C	13 x 26 x 28
WEC6R0755QG-HL	1325	6.0	7.50			●		●			79	115	0.045	6.0V - 40~65˚C 4.8V - 40~85˚C	13 x 26 x 28
WEC6R0126QD-O	1335	6.0	12.00		●						45	65	0.075	6.0V - 40~65˚C 4.8V - 40~85˚C	13 x 26 x 36
WEC6R0126QG-I	1625	6.0	12.00	●							55	85	0.075	6.0V - 40~65˚C 4.8V - 40~85˚C	16.5 x 32.5 x 28
WEC6R0126QG-O	1625	6.0	12.00		●						55	85	0.075	6.0V - 40~65˚C 4.8V - 40~85˚C	16.5 x 32.5 x 28
WEC6R0126QG-H	1625	6.0	12.00			●					55	85	0.075	6.0V - 40~65˚C 4.8V - 40~85˚C	16.5 x 32.5 x 28
WEC6R0176QG-I	1635	6.0	17.50	●							40	60	0.105	6.0V - 40~65˚C 4.8V - 40~85˚C	16.5 x 32.5 x 38
WEC6R0176QG-O	1635	6.0	17.50		●						40	60	0.105	6.0V - 40~65˚C 4.8V - 40~85˚C	16.5 x 32.5 x 38
WEC6R0176QG-H	1635	6.0	17.50			●					40	60	0.105	6.0V - 40~65˚C 4.8V - 40~85˚C	16.5 x 32.5 x 38
WEC6R0256QG-I	1840	6.0	25.00	●							28	44	0.15	6.0V - 40~65˚C 4.8V - 40~85˚C	18.5 x 37 x 43
WEC6R0256QG-O	1840	6.0	25.00		●						28	44	0.15	6.0V - 40~65˚C 4.8V - 40~85˚C	18.5 x 37 x 43
WEC6R0256QG-H	1840	6.0	25.00			●					28	44	0.15	6.0V - 40~65˚C 4.8V - 40~85˚C	18.5 x 37 x 43
WEC6R0306QG-I	1840	6.0	30.00	●							36	50	0.18	6.0V - 40~65˚C 4.8V - 40~85˚C	18.5 x 37 x 44
WEC6R0355QG-3PLA	1025	6.0	3.50	●				●			75	105	0.021	6.0V - 40~65˚C 4.8V - 40~85˚C	10.5 x 21 x 27
WEC9R0334QG-I	0813	9.0	0.33	●							530	800	0.003	6.0V - 40~65˚C 4.8V - 40~85˚C	8.5 x 25.5 x 15.5
WEC9R0115QG-I	0820	9.0	1.10	●							260	440	0.01	6.0V - 40~65˚C 4.8V - 40~85˚C	8.5 x 25.5 x 22.5

Part Number	Singer Cell	Rated Voltage (V)	Capacitance (F)	Lead Type	ESR (mΩ)	Operating Temperature
WEC6R0105QA-OL	0816	6.0	1.00		●	●	225	375	0.006	6.0V - 40~65˚C 4.8V - 40~85˚C	8.5 x 16 x 18
WEC6R0155QG-IL	0820	6.0	1.50	●		●	175	295	0.01	6.0V - 40~65˚C 4.8V - 40~85˚C	8.5 x 17 x 22
WEC6R0155QG-ILA	0820	6.0	1.50	●		●	175	295	0.01	6.0V - 40~65˚C 4.8V - 40~85˚C	8.5 x 17 x 22
WEC6R0155QG-ILB	0820	6.0	1.50	●		●	175	295	0.01	6.0V - 40~65˚C 4.8V - 40~85˚C	8.5 x 17 x 22
WEC6R0505QA-I-L(L&G)	1025	6.0	5.00	●		●	95	155	0.03	6.0V - 40~65˚C 4.8V - 40~85˚C	10.5 x 21 x 27
WEC6R0755QG-O-L	1325	6.0	7.50		●	●	79	115	0.045	6.0V - 40~65˚C 4.8V - 40~85˚C	13 x 26 x 28

Part Number	Singer Cell	Rated Voltage (V)	Capacitance (F)	Lead Type	ESR (mΩ)	Leakage Current (mA, 72hr)	Size (mm) D x W x L
WEC6R0504QD-IL(9mm)	0612	6.0	0.50	●			●	465	2605	0.006	6.0V - 40~65˚C 4.8V - 40~85˚C	6.4 x 13.6 x 14
WEC6R0155QG-OL	0820	6.0	1.50		●		●	175	295	0.01	6.0V - 40~65˚C 4.8V - 40~85˚C	8.5 x 17 x 22
WEC6R0155QG-OLA	0820	6.0	1.50		●		●	175	295	0.01	6.0V - 40~65˚C 4.8V - 40~85˚C	8.5 x 17 x 22
WEC6R0255QG-IL	1020	6.0	2.50	●			●	165	245	0.015	6.0V - 40~65˚C 4.8V - 40~85˚C	10.5 x 21 x 22.5
WEC6R0355QG-OL-C68M42	1020	6.0	3.50		●		●	165	275	0.021	6.0V - 40~65˚C 4.8V - 40~85˚C	10.5 x 21 x 22.5
WEC6R0505QA-OL	1025	6.0	5.00		●		●	95	155	0.03	6.0V - 40~65˚C 4.8V - 40~85˚C	10.5 x 21 x 27
WEC6R0505QA-OLA	1025	6.0	5.00		●		●	95	155	0.03	6.0V - 40~65˚C 4.8V - 40~85˚C	10.5 x 21 x 27
WEC6R0505QG-IL	1030	6.0	5.00	●			●	75	115	0.03	6.0V - 40~65˚C 4.8V - 40~85˚C	10.5 x 21 x 32
WEC6R0755QG-HL	1325	6.0	7.50			●	●	79	115	0.045	6.0V - 40~65˚C 4.8V - 40~85˚C	13 x 26 x 28
WEC6R0355QG-3PLA	1025	6.0	3.50	●			●	75	105	0.021	6.0V - 40~65˚C 4.8V - 40~85˚C	10.5 x 21 x 27

Part Number	Singer Cell	Rated Voltage (V)	Capacitance (F)	Lead Type	Leakage Current (mA, 72hr)	Size (mm) D x W x L
WEC6R0155QG-WCI(25mm)	0820	6.0	1.5		●	215	335	0.01	6.0V - 40~65˚C 4.8V - 40~85˚C	8.5 x 17 x 22
WEC6R0155QG-WCI(40mm)	0820	6.0	1.5		●	225	345	0.01	6.0V - 40~65˚C 4.8V - 40~85˚C	8.5 x 17 x 22
WEC6R0355QD-WC(35mm)	0830	6.0	3.5		●	115	155	0.021	6.0V - 40~65˚C 4.8V - 40~85˚C	8.5 x 17 x 32
WEC6R0355QD-WC(70mm)	0830	6.0	3.5		●	145	205	0.021	6.0V - 40~65˚C 4.8V - 40~85˚C	8.5 x 17 x 32
WEC6R0355QD-WC(80mm)	0830	6.0	3.5		●	145	205	0.021	6.0V - 40~65˚C 4.8V - 40~85˚C	8.5 x 17 x 32
WEC6R0355QG-WCI(45mm)	1020	6.0	3.5	●		200	310	0.021	6.0V - 40~65˚C 4.8V - 40~85˚C	10.5 x 21 x 22
WEC6R0355QG-WCI(35mm)	1020	6.0	3.5	●		180	290	0.021	6.0V - 40~65˚C 4.8V - 40~85˚C	10.5 x 21 x 22
WEC6R0505QA-WCI(35mm)	1025	6.0	5.0	●		130	190	0.03	6.0V - 40~65˚C 4.8V - 40~85˚C	10.5 x 21 x 27
WEC6R0505QA-WCI(50mm)	1030	6.0	5.0	●		135	195	0.03	6.0V - 40~65˚C 4.8V - 40~85˚C	10.5 x 21 x 27
WEC6R0505QA-WCI(62mm)	1025	6.0	5.0	●		140	200	0.06	6.0V - 40~65˚C 4.8V - 40~85˚C	10.5 x 21 x 27
WEC6R0755QG-WCI(35mm)	1325	6.0	7.5	●		115	145	0.045	6.0V - 40~65˚C 4.8V - 40~85˚C	12.5 x 26 x 28
WEC6R0755QG-WC(90mm)	1325	6.0	7.5		●	109	145	0.045	6.0V - 40~65˚C 4.8V - 40~85˚C	12.5 x 26 x 28
VEC5R4256QG-WC(50mm)	1840	5.4	25		●	37	49	0.1	5.4V - 40~65˚C 4.8V - 40~85˚C	18.5 x 38 x 43
VEC5R4126QG-WC	1625	5.4	12.5		●	50	75	0.05	5.4V - 40~65˚C 4.8V - 40~85˚C	16.5 x 35 x 27
VEC6R0155QG-WC	0820	6.0	1.5		●	215	335	0.01	6.0V - 40~65˚C 4.8V - 40~85˚C	8.5 x 17 x 22.5
VEC6R0306QG-WC(40mm)	1840	6.0	30		●	65	78	6.5	6.0V - 40~65˚C 4.8V - 40~85˚C	18.5 x 38 x 43
VEC6R0506QD-WC(100mm)	1859	6.0	50		●	55	69	0.3	6.0V - 40~65˚C 4.8V - 40~85˚C	18.5 x 37 x 63
WEC9R0166QG-WC(60mm)	1840	9.0	16		●	65	86	1.65	9.0V - 40~65˚C	18.5 x 55.5 x 44.5

Part Number	Singer Cell	Rated Voltage (V)	Capacitance (F)	Lead Type	Operating Temperature	Size (mm) D x W x L
VEC5R4504QG-I	0813	5.4	0.50	●					265	395	0.002	5.4V -40~65˚C 4.8V -40~85˚C	8.5 x 17 x 15
VEC5R4155QG-I	0820	5.4	1.50	●					115	195	0.007	5.4V -40~65˚C 4.8V -40~85˚C	8.5 x 17 x 22
VEC5R4255QA-I	0825	5.4	2.50	●					75	125	0.01	5.4V -40~65˚C 4.8V -40~85˚C	8.5 x 17 x 27
VEC5R4255QG-I	1020	5.4	2.50	●					115	175	0.01	5.4V -40~65˚C 4.8V -40~85˚C	10.5 x 21 x 22.5
VEC5R4355QG-I	1020	5.4	3.50	●					115	195	0.014	5.4V -40~65˚C 4.8V -40~85˚C	10.5 x 21 x 22.5
VEC5R4505QA-I	1025	5.4	5.00	●					65	95	0.02	5.4V -40~65˚C 4.8V -40~85˚C	10.5 x 21 x 27
VEC5R4505QG-I	1030	5.4	5.00	●					55	75	0.02	5.4V -40~65˚C 4.8V -40~85˚C	10.5 x 22 x 32
VEC5R4505QC-I	1320	5.4	5.00	●					75	115	0.02	5.4V - 40~65˚C 4.8V - 40~85˚C	13 x 21 x 22.5
VEC5R4755QG-I	1325	5.4	7.50	●					55	85	0.03	5.4V - 40~65˚C 4.8V - 40~85˚C	13 x 26 x 28
VEC5R4206QG-I	1346	5.4	20.00	●					35	55	0.08	5.4V - 40~65˚C 4.8V - 40~85˚C	13.5 x 76 x 48
VEC5R4126QG-I	1625	5.4	12.50	●					39	57	0.05	5.4V - 40~65˚C 4.8V - 40~85˚C	16.5 x 32.5 x 29
VEC6R0504QG-I	0813	6.0	0.50	●					295	445	0.003	6.0V - 40~65˚C 4.8V - 40~85˚C	8.5 x 17 x 15.5
VEC6R0155QG-I	0820	6.0	1.50	●					145	215	0.01	6.0V - 40~65˚C 4.8V - 40~85˚C	8.5 x 17 x 22
VEC6R0355QD-I	0830	6.0	3.50	●					75	125	0.021	6.0V - 40~65˚C 4.8V - 40~85˚C	8.5 x 17 x 32
VEC6R0255QG-I	1020	6.0	2.50	●					135	205	0.015	6.0V - 40~65˚C 4.8V - 40~85˚C	10.5 x 21 x 22.5
VEC6R0355QG-I	1020	6.0	3.50	●					135	225	0.021	6.0V - 40~65˚C 4.8V - 40~85˚C	10.5 x 21 x 22.5
VEC6R0505QA-I	1025	6.0	5.00	●					75	125	0.03	6.0V - 40~65˚C 4.8V - 40~85˚C	10.5 x 21 x 27
VEC6R0505QG-I	1030	6.0	5.00	●					55	85	0.03	6.0V - 40~65˚C 4.8V - 40~85˚C	10.5 x 21 x 32
VEC6R0755QG-I	1325	6.0	7.50	●					65	95	0.045	6.0V - 40~65˚C 4.8V - 40~85˚C	13 x 26 x 28
VEC6R0126QG-I	1625	6.0	12.50	●					45	65	0.075	6.0V - 40~65˚C 4.8V - 40~85˚C	16.5 x 33 x 27
VEC6R0176QG-I	1635	6.0	17.50	●					35	55	0.105	6.0V - 40~65˚C 4.8V - 40~85˚C	16.5 x 33 x 37
VEC9R0115QG-I	0820	9.0	1.10	●					215	320	0.01	6.0V - 40~65˚C 4.8V - 40~85˚C	8.5 x 25.5 x 22.5
WEC5R4504QG-I	0813	5.4	0.50	●					315	465	0.002	5.4V - 40~65˚C 4.8V - 40~85˚C	8.5 x 17 x 15.5
WEC5R4155QG-I	0820	5.4	1.50	●					165	285	0.007	5.4V - 40~65˚C 4.8V - 40~85˚C	8.5 x 17 x 22
WEC5R4255QA-I	0825	5.4	2.50	●					95	155	0.01	5.4V - 40~65˚C 4.8V - 40~85˚C	8.5 x 17 x 27
WEC5R4255QG-I	1020	5.4	2.50	●					135	205	0.01	5.4V - 40~65˚C 4.8V - 40~85˚C	8.5 x 17 x 27
WEC5R4355QG-I	1020	5.4	3.50	●					135	225	0.014	5.4V - 40~65˚C 4.8V - 40~85˚C	10.5 x 21 x 22.5
WEC5R4505QA-I	1025	5.4	5.00	●					79	135	0.02	5.4V - 40~65˚C 4.8V - 40~85˚C	10.5 x 21 x 26
WEC5R4505QG-I	1030	5.4	5.00	●					65	95	0.02	5.4V - 40~65˚C 4.8V - 40~85˚C	10.5 x 21 x 32
WEC5R4505QC-I	1320	5.4	5.00	●					95	145	0.02	5.4V - 40~65˚C 4.8V - 40~85˚C	13 x 26 x 22.5
WEC5R4755QG-I	1325	5.4	7.50	●					65	95	0.03	5.4V - 40~65˚C 4.8V - 40~85˚C	13 x 26 x 28
WEC5R4126QG-I	1625	5.4	12.50	●					47	65	0.05	5.4V - 40~65˚C 4.8V - 40~85˚C	16.5 x 32.5 x 28
WEC6R0504QD-I	0612	6.0	0.50	●					465	2605	0.006	6.0V - 40~65˚C 4.8V - 40~85˚C	6.5 x 13.6 x 14
WEC6R0504QD-IC030	0612	6.0	0.50	●					465	2605	0.006	6.0V - 40~65˚C 4.8V - 40~85˚C	6.4 x 13.6 x 14
WEC6R0504QD-IL(9mm)	0612	6.0	0.50	●		●			465	2605	0.006	6.0V - 40~65˚C 4.8V - 40~85˚C	6.4 x 13.6 x 14
WEC6R0504QG-I	0813	6.0	0.50	●					295	435	0.003	6.0V - 40~65˚C 4.8V - 40~85˚C	8.5 x 17 x 15.5
WEC6R0504QG-I-T	0813	6.0	0.50	●			●		295	435	0.003	6.0V - 40~65˚C 4.8V - 40~85˚C	8.5 x 17 x 15.5
WEC6R0105QA-I	0816	6.0	1.00	●					225	375	0.006	6.0V - 40~65˚C 4.8V - 40~85˚C	8.5 x 16 x 18
WEC6R0155QG-I	0820	6.0	1.50	●					175	295	0.01	6.0V - 40~65˚C 4.8V - 40~85˚C	8.5 x 17 x 22
WEC6R0155QG-I(SP)	0820	6.0	1.50	●					175	295	0.01	6.0V - 40~65˚C 4.8V - 40~85˚C	8.5 x 17 x 22
WEC6R0155QG-IL-ET	0820	6.0	1.50	●			●		175	295	0.01	6.0V - 40~65˚C 4.8V - 40~85˚C	8.5 x 17 x 22
WEC6R0155QG-IL	0820	6.0	1.50	●	●				175	295	0.01	6.0V - 40~65˚C 4.8V - 40~85˚C	8.5 x 17 x 22
WEC6R0155QG-ILA	0820	6.0	1.50	●	●				175	295	0.01	6.0V - 40~65˚C 4.8V - 40~85˚C	8.5 x 17 x 22
WEC6R0155QG-ILB	0820	6.0	1.50	●	●				175	295	0.01	6.0V - 40~65˚C 4.8V - 40~85˚C	8.5 x 17 x 22
WEC6R0255QD-I	0825	6.0	2.50	●					105	175	0.015	6.0V - 40~65˚C 4.8V - 40~85˚C	8.5 x 17 x 27
WEC6R0355QD-I	0830	6.0	3.50	●					95	155	0.021	6.0V - 40~65˚C 4.8V - 40~85˚C	8.5 x 17 x 32
WEC6R0255QG-I	1020	6.0	2.50	●					165	245	0.015	6.0V - 40~65˚C 4.8V - 40~85˚C	10.5 x 21 x 22.5
WEC6R0255QG-IL	1020	6.0	2.50	●		●			165	245	0.015	6.0V - 40~65˚C 4.8V - 40~85˚C	10.5 x 21 x 22.5
WEC6R0355QG-I	1020	6.0	3.50	●					165	275	0.021	6.0V - 40~65˚C 4.8V - 40~85˚C	10.5 x 21 x 22.5
WEC6R0505QA-I	1025	6.0	5.00	●					95	155	0.03	6.0V - 40~65˚C 4.8V - 40~85˚C	10.5 x 21 x 27
WEC6R0505QA-I-P	1025	6.0	5.00	●				●	95	155	0.03	6.0V - 40~65˚C 4.8V - 40~85˚C	10.5 x 21 x 27
WEC6R0505QA-I-L(L&G)	1025	6.0	5.00	●	●				95	155	0.03	6.0V - 40~65˚C 4.8V - 40~85˚C	10.5 x 21 x 27
WEC6R0505QG-I	1030	6.0	5.00	●					75	115	0.03	6.0V - 40~65˚C 4.8V - 40~85˚C	10.5 x 21 x 32
WEC6R0505QG-IL	1030	6.0	5.00	●		●			75	115	0.03	6.0V - 40~65˚C 4.8V - 40~85˚C	10.5 x 21 x 32
WEC6R0755QD-I	1035	6.0	7.50	●					45	65	0.045	6.0V - 40~65˚C 4.8V - 40~85˚C	10.5 x 21 x 37
WEC6R0505QD-I	1320	6.0	5.00	●					110	160	0.03	6.0V - 40~65˚C 4.8V - 40~85˚C	13 x 26 x 22
WEC6R0755QG-I	1325	6.0	7.50	●					79	115	0.045	6.0V - 40~65˚C 4.8V - 40~85˚C	13 x 26 x 28
WEC6R0126QG-I	1625	6.0	12.00	●					55	85	0.075	6.0V - 40~65˚C 4.8V - 40~85˚C	16.5 x 32.5 x 28
WEC6R0176QG-I	1635	6.0	17.50	●					40	60	0.105	6.0V - 40~65˚C 4.8V - 40~85˚C	16.5 x 32.5 x 38
WEC6R0256QG-I	1840	6.0	25.00	●					28	44	0.15	6.0V - 40~65˚C 4.8V - 40~85˚C	18.5 x 37 x 43
WEC6R0306QG-I	1840	6.0	30.00	●					36	50	0.18	6.0V - 40~65˚C 4.8V - 40~85˚C	18.5 x 37 x 44
WEC6R0355QG-3PLA	1025	6.0	3.50	●		●			75	105	0.021	6.0V - 40~65˚C 4.8V - 40~85˚C	10.5 x 21 x 27
WEC9R0334QG-I	0813	9.0	0.33	●					530	800	0.003	6.0V - 40~65˚C 4.8V - 40~85˚C	8.5 x 25.5 x 15.5
WEC9R0115QG-I	0820	9.0	1.10	●					260	440	0.01	6.0V - 40~65˚C 4.8V - 40~85˚C	8.5 x 25.5 x 22.5
WEC6R0355QG-WCI(45mm)	1020	6.0	3.5	●					200	310	0.021	6.0V - 40~65˚C 4.8V - 40~85˚C	10.5 x 21 x 22
WEC6R0355QG-WCI(35mm)	1020	6.0	3.5	●					180	290	0.021	6.0V - 40~65˚C 4.8V - 40~85˚C	10.5 x 21 x 22
WEC6R0505QA-WCI(35mm)	1025	6.0	5.0	●					130	190	0.03	6.0V - 40~65˚C 4.8V - 40~85˚C	10.5 x 21 x 27
WEC6R0505QA-WCI(50mm)	1030	6.0	5.0	●					135	195	0.03	6.0V - 40~65˚C 4.8V - 40~85˚C	10.5 x 21 x 27
WEC6R0505QA-WCI(62mm)	1025	6.0	5.0	●					140	200	0.06	6.0V - 40~65˚C 4.8V - 40~85˚C	10.5 x 21 x 27
WEC6R0755QG-WCI(35mm)	1325	6.0	7.5	●					115	145	0.045	6.0V - 40~65˚C 4.8V - 40~85˚C	12.5 x 26 x 28

Part Number	Singer Cell	Rated Voltage (V)	Capacitance (F)	ESR (mΩ)	Operating Temperature	Size (mm) D x W x L
VEC5R4504QG-O	0813	5.4	0.50	●					265	395	0.002	5.4V -40~65˚C 4.8V -40~85˚C	8.5 x 17 x 15
VEC5R4155QG-O	0820	5.4	1.50	●					115	195	0.007	5.4V -40~65˚C 4.8V -40~85˚C	8.5 x 17 x 22
VEC5R4255QA-O	0825	5.4	2.50	●					75	125	0.01	5.4V -40~65˚C 4.8V -40~85˚C	8.5 x 17 x 27
VEC5R4255QG-O	1020	5.4	2.50	●					115	175	0.01	5.4V -40~65˚C 4.8V -40~85˚C	10.5 x 21 x 22.5
VEC5R4355QG-O	1020	5.4	3.50	●					115	195	0.014	5.4V -40~65˚C 4.8V -40~85˚C	10.5 x 21 x 22.5
VEC5R4505QA-O	1025	5.4	5.00	●					65	95	0.02	5.4V -40~65˚C 4.8V -40~85˚C	10.5 x 21 x 27
VEC5R4505QG-O	1030	5.4	5.00	●					55	75	0.02	5.4V -40~65˚C 4.8V -40~85˚C	10.5 x 22 x 32
VEC5R4505QC-O	1320	5.4	5.00	●					75	115	0.02	5.4V - 40~65˚C 4.8V - 40~85˚C	13 x 21 x 22.5
VEC5R4755QG-O	1325	5.4	7.50	●					55	85	0.03	5.4V - 40~65˚C 4.8V - 40~85˚C	13 x 26 x 28
VEC5R4126QG-O	1625	5.4	12.50	●					39	57	0.05	5.4V - 40~65˚C 4.8V - 40~85˚C	16.5 x 32.5 x 29
VEC6R0504QG-O	0813	6.0	0.50	●					295	445	0.003	6.0V - 40~65˚C 4.8V - 40~85˚C	8.5 x 17 x 15.5
VEC6R0155QG-O	0820	6.0	1.50	●					145	215	0.01	6.0V - 40~65˚C 4.8V - 40~85˚C	8.5 x 17 x 22
VEC6R0355QD-O	0830	6.0	3.50	●					75	125	0.021	6.0V - 40~65˚C 4.8V - 40~85˚C	8.5 x 17 x 32
VEC6R0255QG-O	1020	6.0	2.50	●					135	205	0.015	6.0V - 40~65˚C 4.8V - 40~85˚C	10.5 x 21 x 22.5
VEC6R0355QG-O	1020	6.0	3.50	●					135	225	0.021	6.0V - 40~65˚C 4.8V - 40~85˚C	10.5 x 21 x 22.5
VEC6R0505QA-O	1025	6.0	5.00	●					75	125	0.03	6.0V - 40~65˚C 4.8V - 40~85˚C	10.5 x 21 x 27
VEC6R0505QG-O	1030	6.0	5.00	●					55	85	0.03	6.0V - 40~65˚C 4.8V - 40~85˚C	10.5 x 21 x 32
VEC6R0755QG-O	1325	6.0	7.50	●					65	95	0.045	6.0V - 40~65˚C 4.8V - 40~85˚C	13 x 26 x 28
VEC6R0126QG-O	1625	6.0	12.50	●					45	65	0.075	6.0V - 40~65˚C 4.8V - 40~85˚C	16.5 x 33 x 27
VEC6R0176QG-O	1635	6.0	17.50	●					35	55	0.105	6.0V - 40~65˚C 4.8V - 40~85˚C	16.5 x 33 x 37
WEC5R4504QG-O	0813	5.4	0.50	●					315	465	0.002	5.4V - 40~65˚C 4.8V - 40~85˚C	8.5 x 17 x 15.5
WEC5R4155QG-O	0820	5.4	1.50	●					165	285	0.007	5.4V - 40~65˚C 4.8V - 40~85˚C	8.5 x 17 x 22
WEC5R4155QG-O-T	0820	5.4	1.50	●			●		165	285	0.007	5.4V - 40~65˚C 4.8V - 40~85˚C	8.5 x 17 x 22
WEC5R4255QA-O	0825	5.4	2.50	●					95	155	0.01	5.4V - 40~65˚C 4.8V - 40~85˚C	8.5 x 17 x 27
WEC5R4255QG-O	1020	5.4	2.50	●					135	205	0.01	5.4V - 40~65˚C 4.8V - 40~85˚C	8.5 x 17 x 27
WEC5R4355QG-O	1020	5.4	3.50	●					135	225	0.014	5.4V - 40~65˚C 4.8V - 40~85˚C	10.5 x 21 x 22.5
WEC5R4505QA-O	1025	5.4	5.00	●					79	135	0.02	5.4V - 40~65˚C 4.8V - 40~85˚C	10.5 x 21 x 26
WEC5R4505QG-O	1030	5.4	5.00	●					65	95	0.02	5.4V - 40~65˚C 4.8V - 40~85˚C	10.5 x 21 x 32
WEC5R4505QC-O	1320	5.4	5.00	●					95	145	0.02	5.4V - 40~65˚C 4.8V - 40~85˚C	13 x 26 x 22.5
WEC5R4755QG-O	1325	5.4	7.50	●					65	95	0.03	5.4V - 40~65˚C 4.8V - 40~85˚C	13 x 26 x 28
WEC5R4126QG-O	1625	5.4	12.50	●					47	65	0.05	5.4V - 40~65˚C 4.8V - 40~85˚C	16.5 x 32.5 x 28
WEC6R0504QD-O	0612	6.0	0.50	●					465	2605	0.006	6.0V - 40~65˚C 4.8V - 40~85˚C	6.5 x 13.6 x 14
WEC6R0504QG-O	0813	6.0	0.50	●					295	435	0.003	6.0V - 40~65˚C 4.8V - 40~85˚C	8.5 x 17 x 15.5
WEC6R0504QG-OT(L&G)	0813	6.0	0.50	●			●		295	435	0.003	6.0V - 40~65˚C 4.8V - 40~85˚C	8.5 x 17 x 15.5
WEC6R0105QA-O	0816	6.0	1.00	●					225	375	0.006	6.0V - 40~65˚C 4.8V - 40~85˚C	8.5 x 16 x 18
WEC6R0105QA-OL	0816	6.0	1.00	●	●				225	375	0.006	6.0V - 40~65˚C 4.8V - 40~85˚C	8.5 x 16 x 18
WEC6R0105QA-OT(L&G)	0816	6.0	1.00	●			●		225	375	0.006	6.0V - 40~65˚C 4.8V - 40~85˚C	8.5 x 16 x 18
WEC6R0155QG-O	0820	6.0	1.50	●					175	295	0.01	6.0V - 40~65˚C 4.8V - 40~85˚C	8.5 x 17 x 22
WEC6R0155QG-O(AV)	0820	6.0	1.50	●					175	295	0.01	6.0V - 40~65˚C 4.8V - 40~85˚C	8.5 x 17 x 22
WEC6R0155QG-OL	0820	6.0	1.50	●		●			175	295	0.01	6.0V - 40~65˚C 4.8V - 40~85˚C	8.5 x 17 x 22
WEC6R0155QG-OLA	0820	6.0	1.50	●		●			175	295	0.01	6.0V - 40~65˚C 4.8V - 40~85˚C	8.5 x 17 x 22
WEC6R0155QG-O-T	0820	6.0	1.50	●			●		175	295	0.01	6.0V - 40~65˚C 4.8V - 40~85˚C	8.5 x 17 x 22
WEC6R0255QD-O	0825	6.0	2.50	●					105	175	0.015	6.0V - 40~65˚C 4.8V - 40~85˚C	8.5 x 17 x 27
WEC6R0355QD-O	0830	6.0	3.50	●					95	155	0.021	6.0V - 40~65˚C 4.8V - 40~85˚C	8.5 x 17 x 32
WEC6R0255QG-O	1020	6.0	2.50	●					165	245	0.015	6.0V - 40~65˚C 4.8V - 40~85˚C	10.5 x 21 x 22.5
WEC6R0355QG-O	1020	6.0	3.50	●					165	275	0.021	6.0V - 40~65˚C 4.8V - 40~85˚C	10.5 x 21 x 22.5
WEC6R0355QG-OL-C68M42	1020	6.0	3.50	●		●			165	275	0.021	6.0V - 40~65˚C 4.8V - 40~85˚C	10.5 x 21 x 22.5
WEC6R0505QA-O	1025	6.0	5.00	●					95	155	0.03	6.0V - 40~65˚C 4.8V - 40~85˚C	10.5 x 21 x 27
WEC6R0505QA-OL	1025	6.0	5.00	●		●			95	155	0.03	6.0V - 40~65˚C 4.8V - 40~85˚C	10.5 x 21 x 27
WEC6R0505QA-OLA	1025	6.0	5.00	●		●			95	155	0.03	6.0V - 40~65˚C 4.8V - 40~85˚C	10.5 x 21 x 27
WEC6R0505QG-O	1030	6.0	5.00	●					75	115	0.03	6.0V - 40~65˚C 4.8V - 40~85˚C	10.5 x 21 x 32
WEC6R0505QG-O-T	1030	6.0	5.00	●			●	●	75	115	0.03	6.0V - 40~65˚C 4.8V - 40~85˚C	10.5 x 21 x 32
WEC6R0755QD-O	1035	6.0	7.50	●					45	65	0.045	6.0V - 40~65˚C 4.8V - 40~85˚C	10.5 x 21 x 37
WEC6R0505QD-O	1320	6.0	5.00	●					110	160	0.03	6.0V - 40~65˚C 4.8V - 40~85˚C	13 x 26 x 22
WEC6R0755QG-O	1325	6.0	7.50	●					79	115	0.045	6.0V - 40~65˚C 4.8V - 40~85˚C	13 x 26 x 28
WEC6R0755QG-O-T	1325	6.0	7.50	●			●		79	115	0.045	6.0V - 40~65˚C 4.8V - 40~85˚C	13 x 26 x 28
WEC6R0755QG-O-L	1325	6.0	7.50	●	●				79	115	0.045	6.0V - 40~65˚C 4.8V - 40~85˚C	13 x 26 x 28
WEC6R0126QD-O	1335	6.0	12.00	●					45	65	0.075	6.0V - 40~65˚C 4.8V - 40~85˚C	13 x 26 x 36
WEC6R0126QG-O	1625	6.0	12.00	●					55	85	0.075	6.0V - 40~65˚C 4.8V - 40~85˚C	16.5 x 32.5 x 28
WEC6R0176QG-O	1635	6.0	17.50	●					40	60	0.105	6.0V - 40~65˚C 4.8V - 40~85˚C	16.5 x 32.5 x 38
WEC6R0256QG-O	1840	6.0	25.00	●					28	44	0.15	6.0V - 40~65˚C 4.8V - 40~85˚C	18.5 x 37 x 43

Part Number	Singer Cell	Rated Voltage (V)	Capacitance (F)	Leakage Current (mA, 72hr)	Size (mm) D x W x L
VEC5R4504QG-H	0813	5.4	0.50	●		265	395	0.002	5.4V -40~65˚C 4.8V -40~85˚C	8.5 x 17 x 15
VEC5R4155QG-H	0820	5.4	1.50	●		115	195	0.007	5.4V -40~65˚C 4.8V -40~85˚C	8.5 x 17 x 22
VEC5R4255QA-H	0825	5.4	2.50	●		75	125	0.01	5.4V -40~65˚C 4.8V -40~85˚C	8.5 x 17 x 27
VEC5R4255QG-H	1020	5.4	2.50	●		115	175	0.01	5.4V -40~65˚C 4.8V -40~85˚C	10.5 x 21 x 22.5
VEC5R4355QG-H	1020	5.4	3.50	●		115	195	0.014	5.4V -40~65˚C 4.8V -40~85˚C	10.5 x 21 x 22.5
VEC5R4505QA-H	1025	5.4	5.00	●		65	95	0.02	5.4V -40~65˚C 4.8V -40~85˚C	10.5 x 21 x 27
VEC5R4505QG-H	1030	5.4	5.00	●		55	75	0.02	5.4V -40~65˚C 4.8V -40~85˚C	10.5 x 22 x 32
VEC5R4505QC-H	1320	5.4	5.00	●		75	115	0.02	5.4V - 40~65˚C 4.8V - 40~85˚C	13 x 21 x 22.5
VEC5R4755QG-H	1325	5.4	7.50	●		55	85	0.03	5.4V - 40~65˚C 4.8V - 40~85˚C	13 x 26 x 28
VEC5R4126QG-H	1625	5.4	12.50	●		39	57	0.05	5.4V - 40~65˚C 4.8V - 40~85˚C	16.5 x 32.5 x 29
VEC6R0504QG-H	0813	6.0	0.50	●		295	445	0.003	6.0V - 40~65˚C 4.8V - 40~85˚C	8.5 x 17 x 15.5
VEC6R0155QG-H	0820	6.0	1.50	●		145	215	0.01	6.0V - 40~65˚C 4.8V - 40~85˚C	8.5 x 17 x 22
VEC6R0754QG-H	0820	6.0	0.75	●		200	290	0.005	6.0V - 40~65˚C 4.8V - 40~85˚C	8.5 x 17 x 22
VEC6R0355QD-H	0830	6.0	3.50	●		75	125	0.021	6.0V - 40~65˚C 4.8V - 40~85˚C	8.5 x 17 x 32
VEC6R0255QG- H	1020	6.0	2.50	●		135	205	0.015	6.0V - 40~65˚C 4.8V - 40~85˚C	10.5 x 21 x 22.5
VEC6R0355QG-H	1020	6.0	3.50	●		135	225	0.021	6.0V - 40~65˚C 4.8V - 40~85˚C	10.5 x 21 x 22.5
VEC6R0505QA-H	1025	6.0	5.00	●		75	125	0.03	6.0V - 40~65˚C 4.8V - 40~85˚C	10.5 x 21 x 27
VEC6R0505QG-H	1030	6.0	5.00	●		55	85	0.03	6.0V - 40~65˚C 4.8V - 40~85˚C	10.5 x 21 x 32
VEC6R0755QG-H	1325	6.0	7.50	●		65	95	0.045	6.0V - 40~65˚C 4.8V - 40~85˚C	13 x 26 x 28
VEC6R0126QG-H	1625	6.0	12.50	●		45	65	0.075	6.0V - 40~65˚C 4.8V - 40~85˚C	16.5 x 33 x 27
VEC6R0176QG-H	1635	6.0	17.50	●		35	55	0.105	6.0V - 40~65˚C 4.8V - 40~85˚C	16.5 x 33 x 37
WEC5R4504QG-H	0813	5.4	0.50	●		315	465	0.002	5.4V - 40~65˚C 4.8V - 40~85˚C	8.5 x 17 x 15.5
WEC5R4155QG-H	0820	5.4	1.50	●		165	285	0.007	5.4V - 40~65˚C 4.8V - 40~85˚C	8.5 x 17 x 22
WEC5R4255QA-H	0825	5.4	2.50	●		95	155	0.01	5.4V - 40~65˚C 4.8V - 40~85˚C	8.5 x 17 x 27
WEC5R4255QG-H	1020	5.4	2.50	●		135	205	0.01	5.4V - 40~65˚C 4.8V - 40~85˚C	8.5 x 17 x 27
WEC5R4355QG-H	1020	5.4	3.50	●		135	225	0.014	5.4V - 40~65˚C 4.8V - 40~85˚C	10.5 x 21 x 22.5
WEC5R4505QA-H	1025	5.4	5.00	●		79	135	0.02	5.4V - 40~65˚C 4.8V - 40~85˚C	10.5 x 21 x 26
WEC5R4505QG-H	1030	5.4	5.00	●		65	95	0.02	5.4V - 40~65˚C 4.8V - 40~85˚C	10.5 x 21 x 32
WEC5R4505QC-H	1320	5.4	5.00	●		95	145	0.02	5.4V - 40~65˚C 4.8V - 40~85˚C	13 x 26 x 22.5
WEC5R4755QG-H	1325	5.4	7.50	●		65	95	0.03	5.4V - 40~65˚C 4.8V - 40~85˚C	13 x 26 x 28
WEC5R4126QG-H	1625	5.4	12.50	●		47	65	0.05	5.4V - 40~65˚C 4.8V - 40~85˚C	16.5 x 32.5 x 28
WEC6R0504QG-H	0813	6.0	0.50	●		295	435	0.003	6.0V - 40~65˚C 4.8V - 40~85˚C	8.5 x 17 x 15.5
WEC6R0105QA-H	0816	6.0	1.00	●		225	375	0.006	6.0V - 40~65˚C 4.8V - 40~85˚C	8.5 x 16 x 18
WEC6R0155QG-H	0820	6.0	1.50	●		175	295	0.01	6.0V - 40~65˚C 4.8V - 40~85˚C	8.5 x 17 x 22
WEC6R0155QG-H(L&G)	0820	6.0	1.50	●		175	295	0.01	6.0V - 40~65˚C 4.8V - 40~85˚C	8.5 x 17 x 22
WEC6R0255QD-H	0825	6.0	2.50	●		105	175	0.015	6.0V - 40~65˚C 4.8V - 40~85˚C	8.5 x 17 x 27
WEC6R0355QD-H	0830	6.0	3.50	●		95	155	0.021	6.0V - 40~65˚C 4.8V - 40~85˚C	8.5 x 17 x 32
WEC6R0255QG-H	1020	6.0	2.50	●		165	245	0.015	6.0V - 40~65˚C 4.8V - 40~85˚C	10.5 x 21 x 22.5
WEC6R0355QG-H	1020	6.0	3.50	●		165	275	0.021	6.0V - 40~65˚C 4.8V - 40~85˚C	10.5 x 21 x 22.5
WEC6R0505QA-H	1025	6.0	5.00	●		95	155	0.03	6.0V - 40~65˚C 4.8V - 40~85˚C	10.5 x 21 x 27
WEC6R0505QG-H	1030	6.0	5.00	●		75	115	0.03	6.0V - 40~65˚C 4.8V - 40~85˚C	10.5 x 21 x 32
WEC6R0755QD-H	1035	6.0	7.50	●		45	65	0.045	6.0V - 40~65˚C 4.8V - 40~85˚C	10.5 x 21 x 37
WEC6R0505QD-H	1320	6.0	5.00	●		110	160	0.03	6.0V - 40~65˚C 4.8V - 40~85˚C	13 x 26 x 22
WEC6R0755QG-H	1325	6.0	7.50	●		79	115	0.045	6.0V - 40~65˚C 4.8V - 40~85˚C	13 x 26 x 28
WEC6R0755QG-HL	1325	6.0	7.50	●	●	79	115	0.045	6.0V - 40~65˚C 4.8V - 40~85˚C	13 x 26 x 28
WEC6R0126QG-H	1625	6.0	12.00	●		55	85	0.075	6.0V - 40~65˚C 4.8V - 40~85˚C	16.5 x 32.5 x 28
WEC6R0176QG-H	1635	6.0	17.50	●		40	60	0.105	6.0V - 40~65˚C 4.8V - 40~85˚C	16.5 x 32.5 x 38
WEC6R0256QG-H	1840	6.0	25.00	●		28	44	0.15	6.0V - 40~65˚C 4.8V - 40~85˚C	18.5 x 37 x 43
WEC6R0155QG-WCI(25mm)	0820	6.0	1.5	●		215	335	0.01	6.0V - 40~65˚C 4.8V - 40~85˚C	8.5 x 17 x 22
WEC6R0155QG-WCI(40mm)	0820	6.0	1.5	●		225	345	0.01	6.0V - 40~65˚C 4.8V - 40~85˚C	8.5 x 17 x 22
WEC6R0355QD-WC(35mm)	0830	6.0	3.5	●		115	155	0.021	6.0V - 40~65˚C 4.8V - 40~85˚C	8.5 x 17 x 32
WEC6R0355QD-WC(70mm)	0830	6.0	3.5	●		145	205	0.021	6.0V - 40~65˚C 4.8V - 40~85˚C	8.5 x 17 x 32
WEC6R0355QD-WC(80mm)	0830	6.0	3.5	●		145	205	0.021	6.0V - 40~65˚C 4.8V - 40~85˚C	8.5 x 17 x 32
WEC6R0755QG-WC(90mm)	1325	6.0	7.5	●		109	145	0.045	6.0V - 40~65˚C 4.8V - 40~85˚C	12.5 x 26 x 28
VEC5R4256QG-WC(50mm)	1840	5.4	25	●		37	49	0.1	5.4V - 40~65˚C 4.8V - 40~85˚C	18.5 x 38 x 43
VEC5R4126QG-WC	1625	5.4	12.5	●		50	75	0.05	5.4V - 40~65˚C 4.8V - 40~85˚C	16.5 x 35 x 27
VEC6R0155QG-WC	0820	6.0	1.5	●		215	335	0.01	6.0V - 40~65˚C 4.8V - 40~85˚C	8.5 x 17 x 22.5
VEC6R0306QG-WC(40mm)	1840	6.0	30	●		65	78	6.5	6.0V - 40~65˚C 4.8V - 40~85˚C	18.5 x 38 x 43
VEC6R0506QD-WC(100mm)	1859	6.0	50	●		55	69	0.3	6.0V - 40~65˚C 4.8V - 40~85˚C	18.5 x 37 x 63
WEC9R0166QG-WC(60mm)	1840	9.0	16	●		65	86	1.65	9.0V - 40~65˚C	18.5 x 55.5 x 44.5

Catalog Download

Download

비나텍 (VINATech): 친환경 에너지 솔루션으로 미래를 선도합니다.

Product

Supercapacitor

Series Group Chart

각 항목을 클릭하시면 해당 타입의 제품 리스트를 확인하실 수 있습니다.

Catalog Download
